MuleSoft Accelerator for Salesforce Commerce Cloud

The following provides guidance on how to use the custom BAPI code (ZBAPIFM\_MATERIAL\_GET\_DATA) for your SAP instance.

Important: You must complete the following instructions before proceeding to Use case 2 - Inventory.

BAPI custom objects

You must create the following ABAP objects in order to use this custom BAPI, which are described below.

Data elements:

• ZBAPI_MATERIALDTE_DATE
• ZBAPI_MATERIALDTE_TIME

Structures

• ZBAPI_MATERIALSTR_RNG_DATES
• ZBAPI_MATERIALSTR_RNG_TIME
• ZBAPISTR_MATERIAL_DATA_IN
• ZBAPISTR_INVENTORY_DATA_IN
• ZBAPISTR_MATERIAL_DATA_OUT
• ZBAPISTR_INVENTORY_DATA_OUT

Table types:

• ZBAPITTY_MATERIAL_DATA_OUT
• ZBAPITTY_INVENTORY_DATA_OUT
• ZBAPI_MATERIALTTY_RNG_DATES
• ZBAPI_MATERIALTTY_RNG_TIME

Class/interface: (optional, needed to handle exceptions)

• ZCL_EXCEPTION_HELPER

Function group:

• ZBAPIFGR_MATERIAL

Data elements

Object	How to create

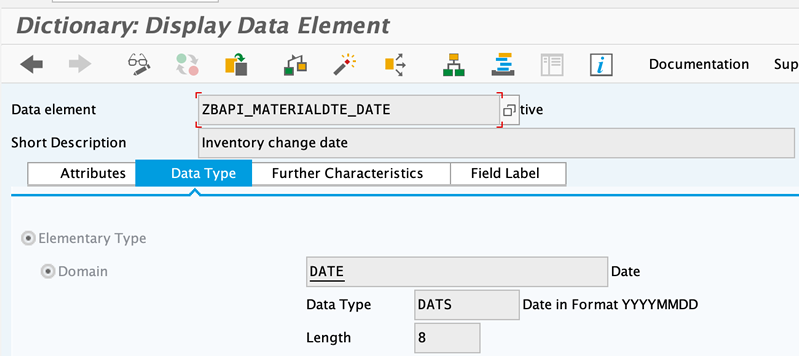

ZBAPI_MATERIALDTE_DATE

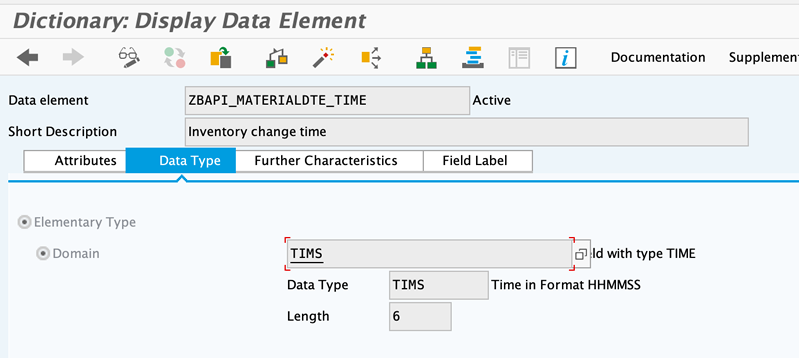

ZBAPI_MATERIALDTE_TIME

Structures

Object	How to create

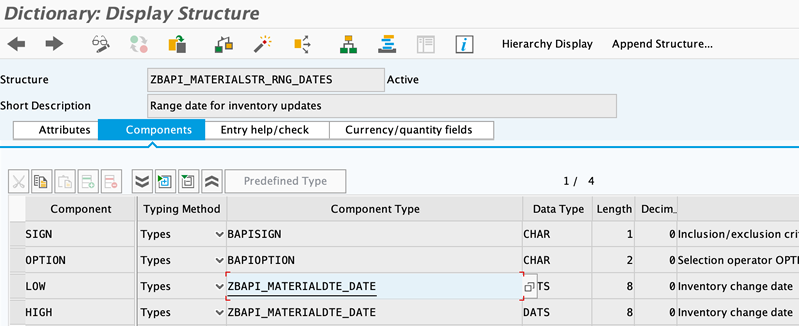

ZBAPI_MATERIALSTR_RNG_DATES

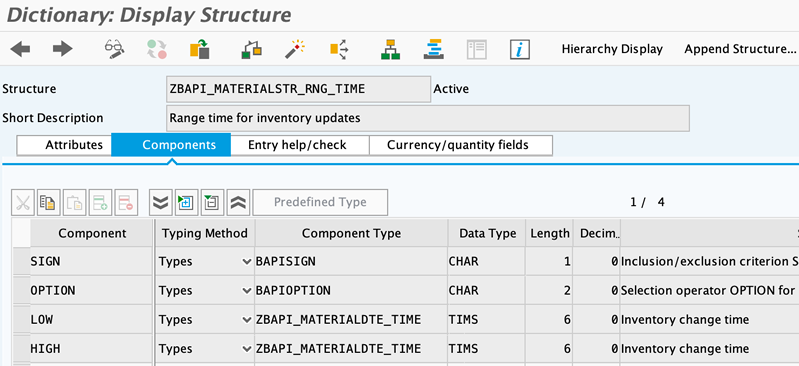

ZBAPI_MATERIALSTR_RNG_TIME

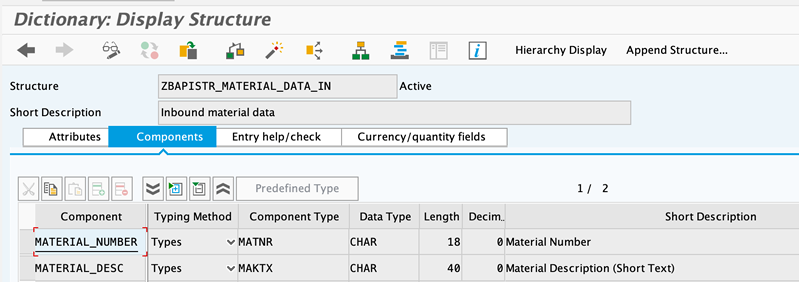

ZBAPISTR_MATERIAL_DATA_IN
ZBAPISTR_INVENTORY_DATA_IN

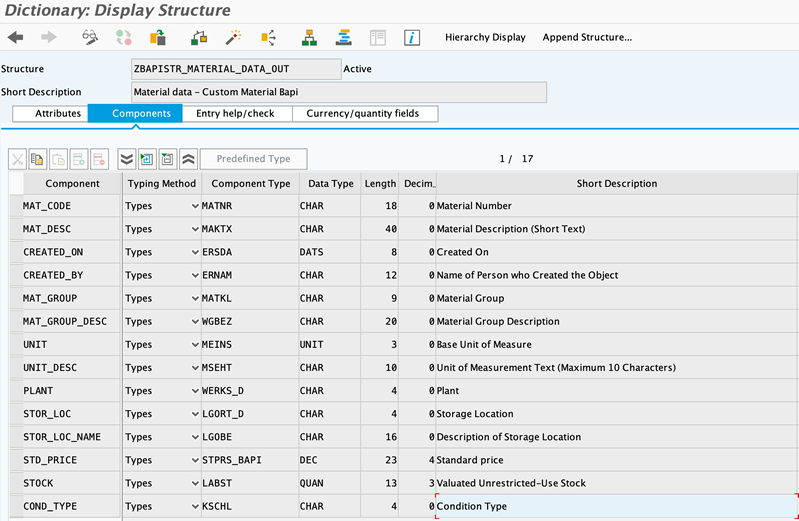

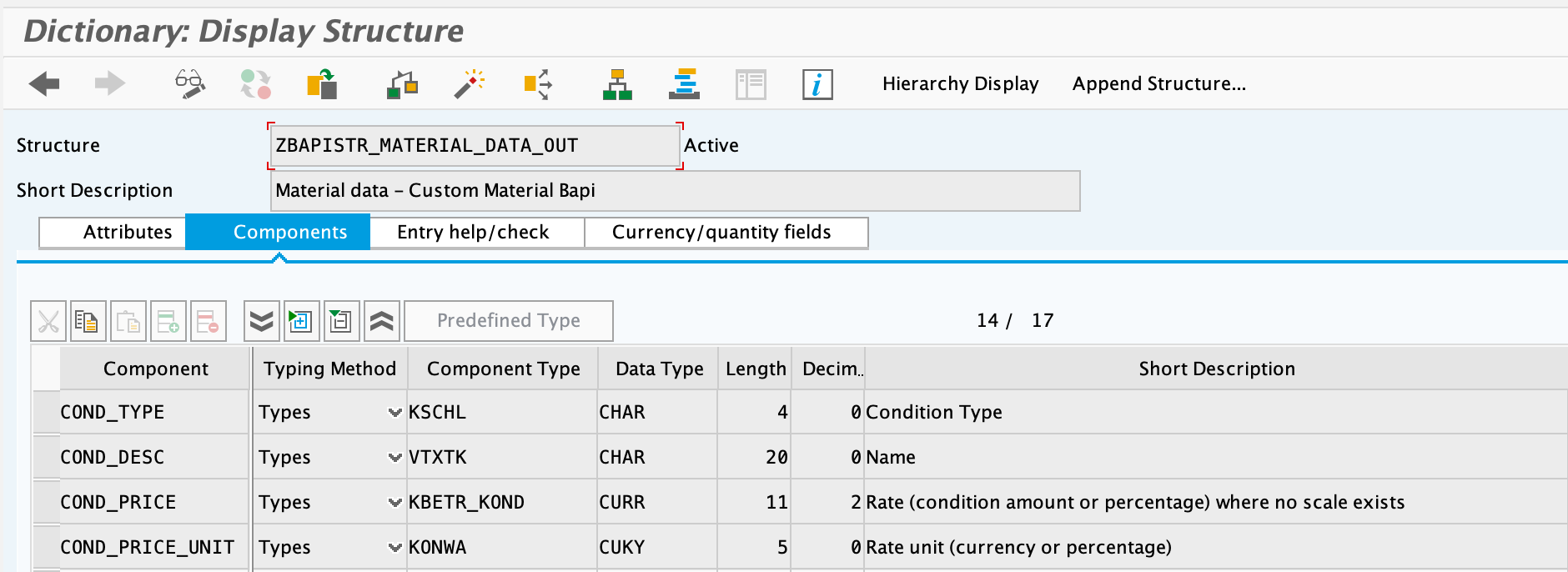

ZBAPISTR_MATERIAL_DATA_OUT

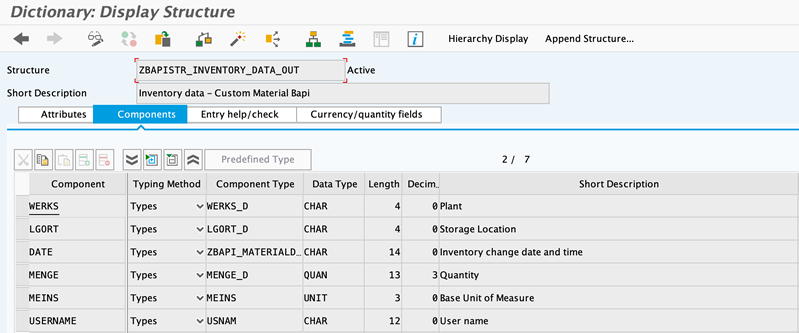

ZBAPISTR_INVENTORY_DATA_OUT

Table types

Object	How to create

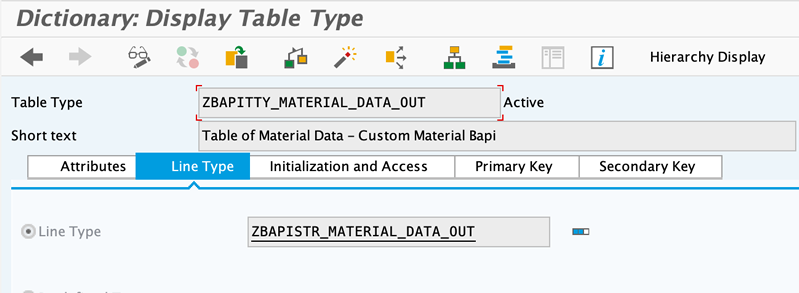

ZBAPITTY_MATERIAL_DATA_OUT

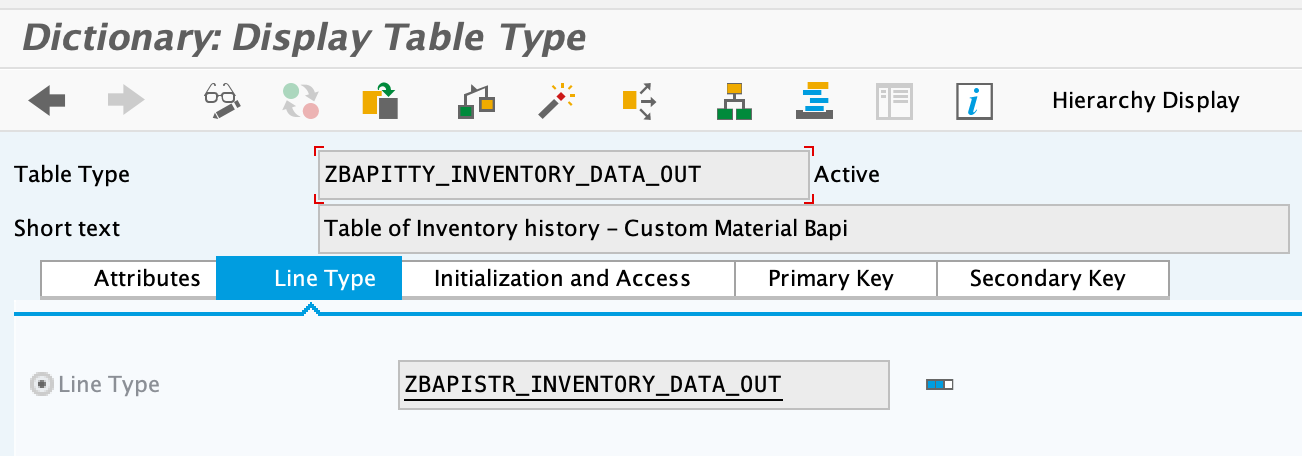

ZBAPITTY_INVENTORY_DATA_OUT

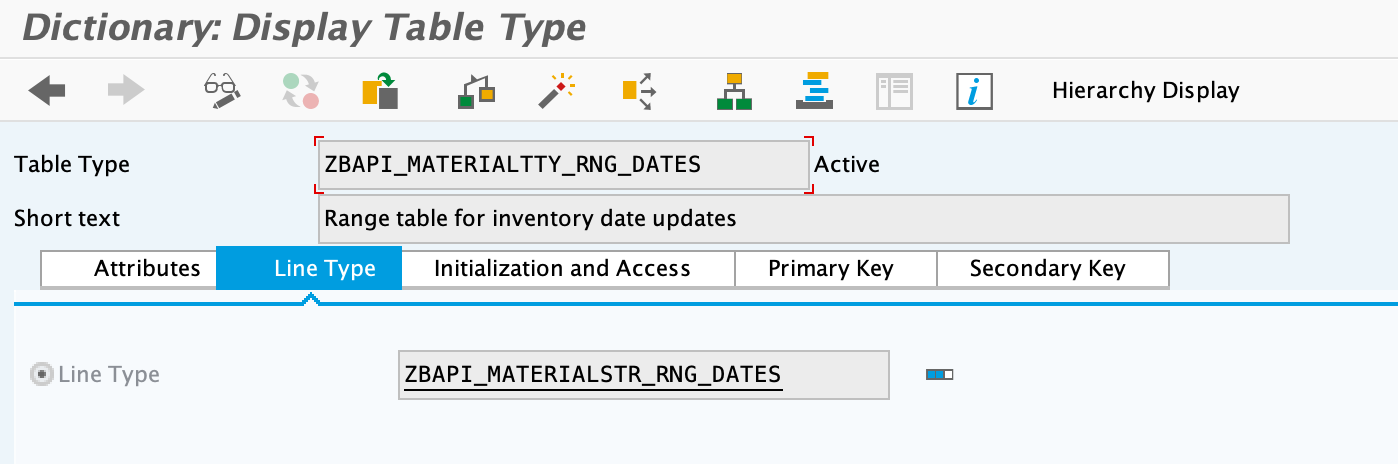

ZBAPI_MATERIALTTY_RNG_DATES

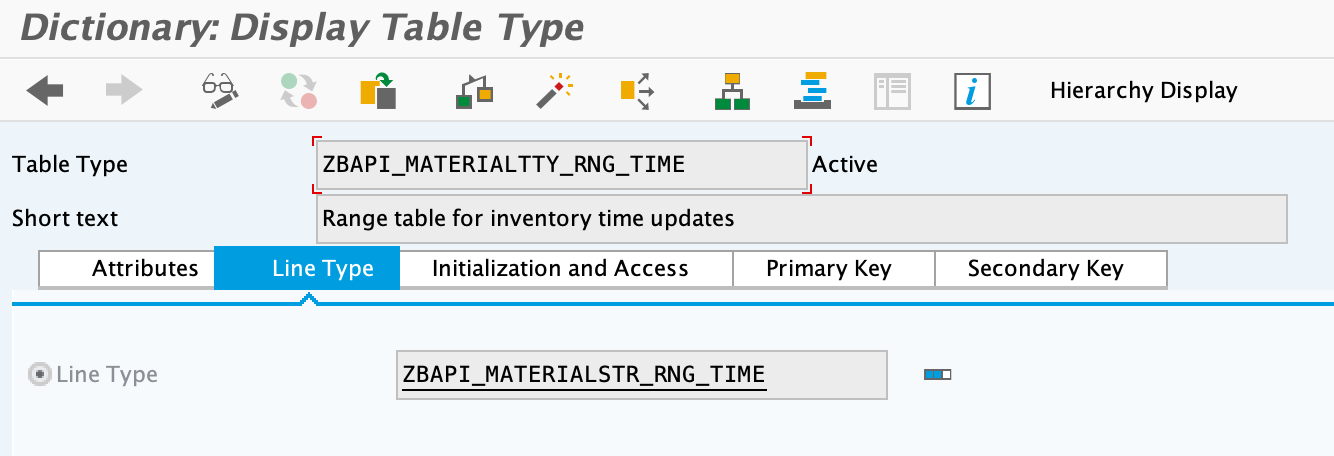

ZBAPI_MATERIALTTY_RNG_TIME

Class/Interface

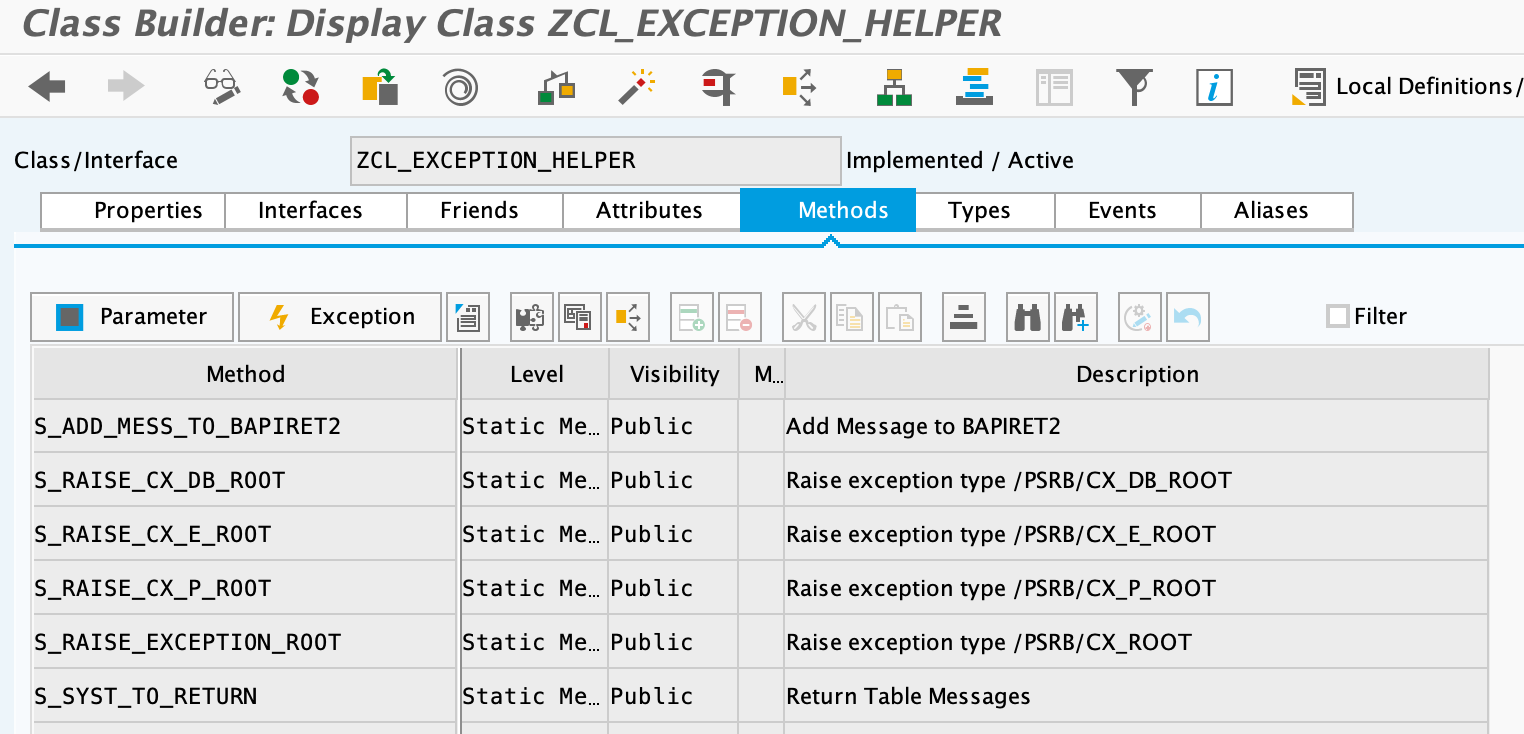

ZCL_EXCEPTION_HELPER

This class is used to handle the BAPI messages. In this case, the method used is S_SYST_TO_RETURN:

Creating a function group

The following describes how to create a function group named ZBAPIFGR_MATERIAL:

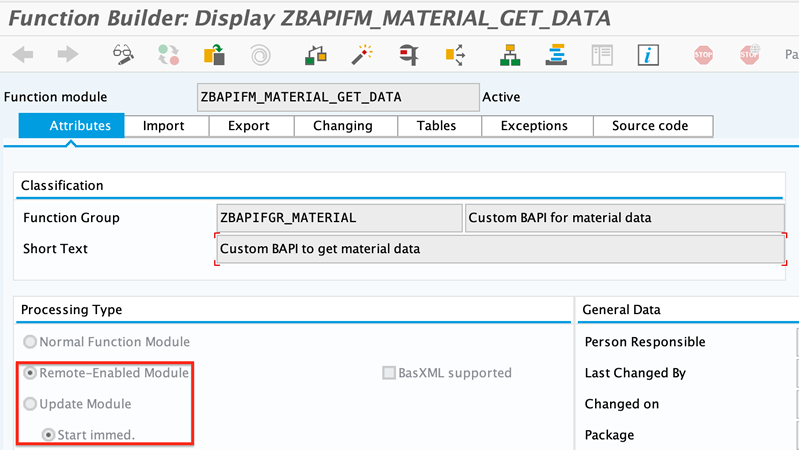

1. Create function module ZBAPIFM_MATERIAL_GET_DATA, using "Remote-enable module" as processing type:




2. Complete the import parameters with the following:

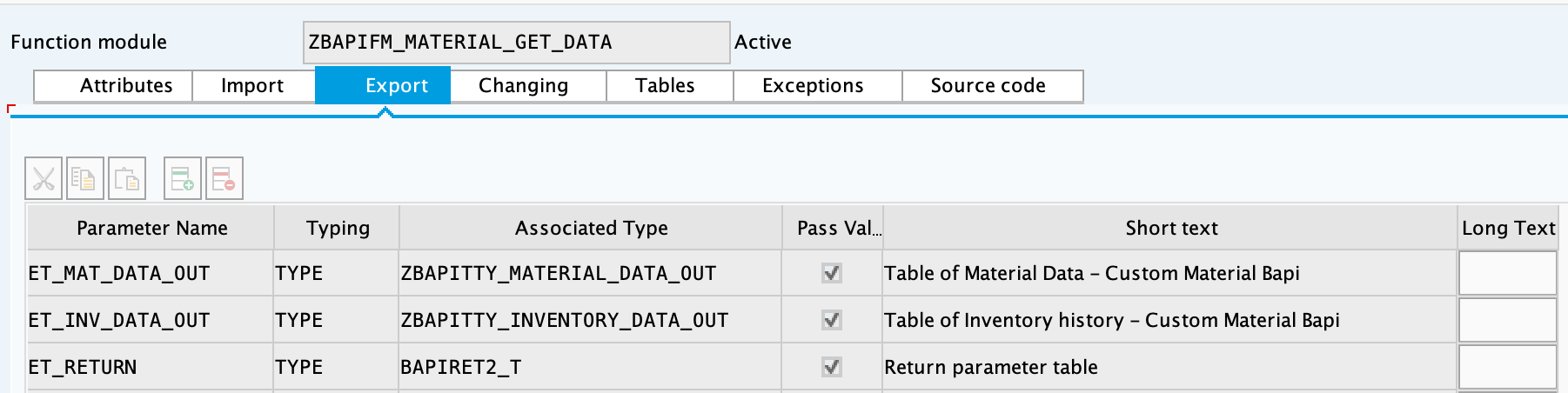

3. Complete the export parameters with the following:




4. Copy and paste the code from ZBAPIFM_MATERIAL_GET_DATA.txt, and then activate it.

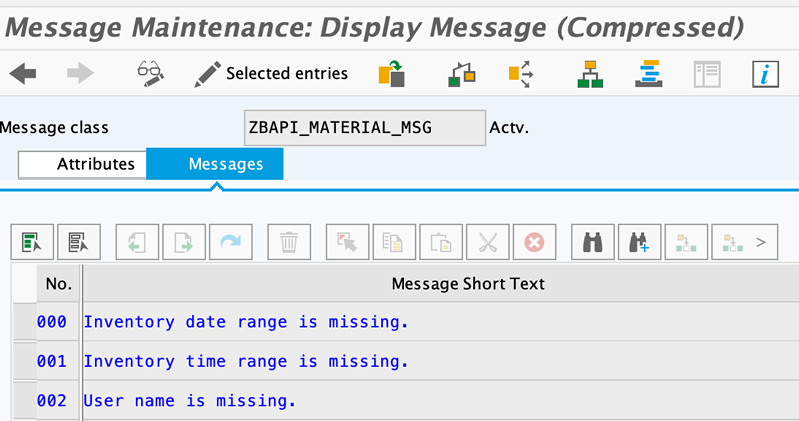

5. Create ZBAPI_MATERIAL_MSG message class with the following messages:
