Use case 1 - Customer profile sync

Enable a single view of your customer by simplifying connectivity between ERP, CRM, marketing and commerce systems.

Overview
- Description
- Solution definition
- Assumptions and constraints
- High-level architecture
- Activity diagram
- Processing logic
- Successful outcome

Use case extensions

See also

Downloadable assets

Description

The Customer Profile Sync use case enables the creation and updates of consistent and connected customer profiles across relevant applications, regardless of where the starting point of the customer’s journey is.

Glossary

TermDefinition
CIMThe Cloud Information Model (CIM) defines a set of standard data structures that can be used as canonical representations of common entities for integrating systems.
Global DataA Global Data service provides an accurate, consistent, and complete copy of business data for use by enterprise applications and business partners while also providing a means to link that copy to occurrences in other systems.

Goals

  • Support the creation of customer profiles across relevant applications, inclusive of Salesforce Clouds
    • Support the creation of Global Customer ID & ID attribution
  • Orchestrate controlled profile updates across designated applications
  • Access customer engagement data across applications

Use case considerations

  • Customers will possess multiple profiles
  • These profiles are system specific and can originate from different systems
  • Journeys require that each system identify profiles consistently
  • Rich journeys require access to the engagement data attached to profiles

Technical considerations

  • Enable the creation of a global customer ID that allows you to retrieve/create IDs regardless of where the customer info is created
  • Use CIM as the canonical model
  • Build using top applications, inclusive of Salesforce products, but should be built to work with other endpoints as well. For this solution, leverage the following applications:
    • Salesforce B2C Commerce (B2C), Salesforce Marketing Cloud, Salesforce Core (Sales, Service, B2B Commerce), SAP ECC, SAP S/4HANA, and Global Party System API (generic)

End-to-end scenarios

  • B2C create β€” Customer creates an account in B2C Commerce Cloud while ordering an item
  • B2C update β€” Customer updates their account, adding a new shipping address, while ordering an item
  • Marketing Cloud create β€” User signs up for a newsletter via MC
  • Salesforce create/update β€” A new customer account or an organization is created, instead of an individual within an account, which needs to be represented in other relevant apps
  • SAP create and update β€” Creation/Update of users via in-store loyalty program signup or physical catalog subscriber data, both stored in SAP

Solution definition

The primary set of use cases covered in the current solution involve the synchronization of customer, individual, and organization profile data between multiple systems.

Goal

Synchronize new and updated customer profiles from different systems to a single golden copy maintained by a Global Party Data service.

Main success scenario

  1. Receive a new or updated customer profile from an external system
  2. Attempt to match the input to an existing customer profile in Salesforce core
  3. If a match is found, update the existing entry in Salesforce core
  4. Publish the update to downstream systems registered for updates
  5. If no match is found, create a new entry in Salesforce core
  6. Publish the update to downstream systems registered for updates

Assumptions and constraints

The following will be used to guide or constrain the solution design at a high level:

  • The Cloud Information Model (CIM) will be used as the canonical model for all business types; see the CIM usage guidelines in that asset.
  • Global customer identifiers will be maintained in Salesforce. Wherever possible, these will be assigned as external identifiers in target systems.
  • References to the global customer IDs will be reflected in downstream systems using custom properties to avoid conflicts with the usage of other external identifiers (e.g., global party IDs in Salesforce).
  • The base Salesforce Account object will be interpreted as an Organization Customers, while the Person Account record type (and all Contacts) will be interpreted as Individual Customers. Customer updates pushed to Salesforce Core will therefore be mapped to Person Account instances for Individuals and regular Accounts for Organizations.
  • Updates made in Salesforce will be pushed to MuleSoft by subscribing to platform events.

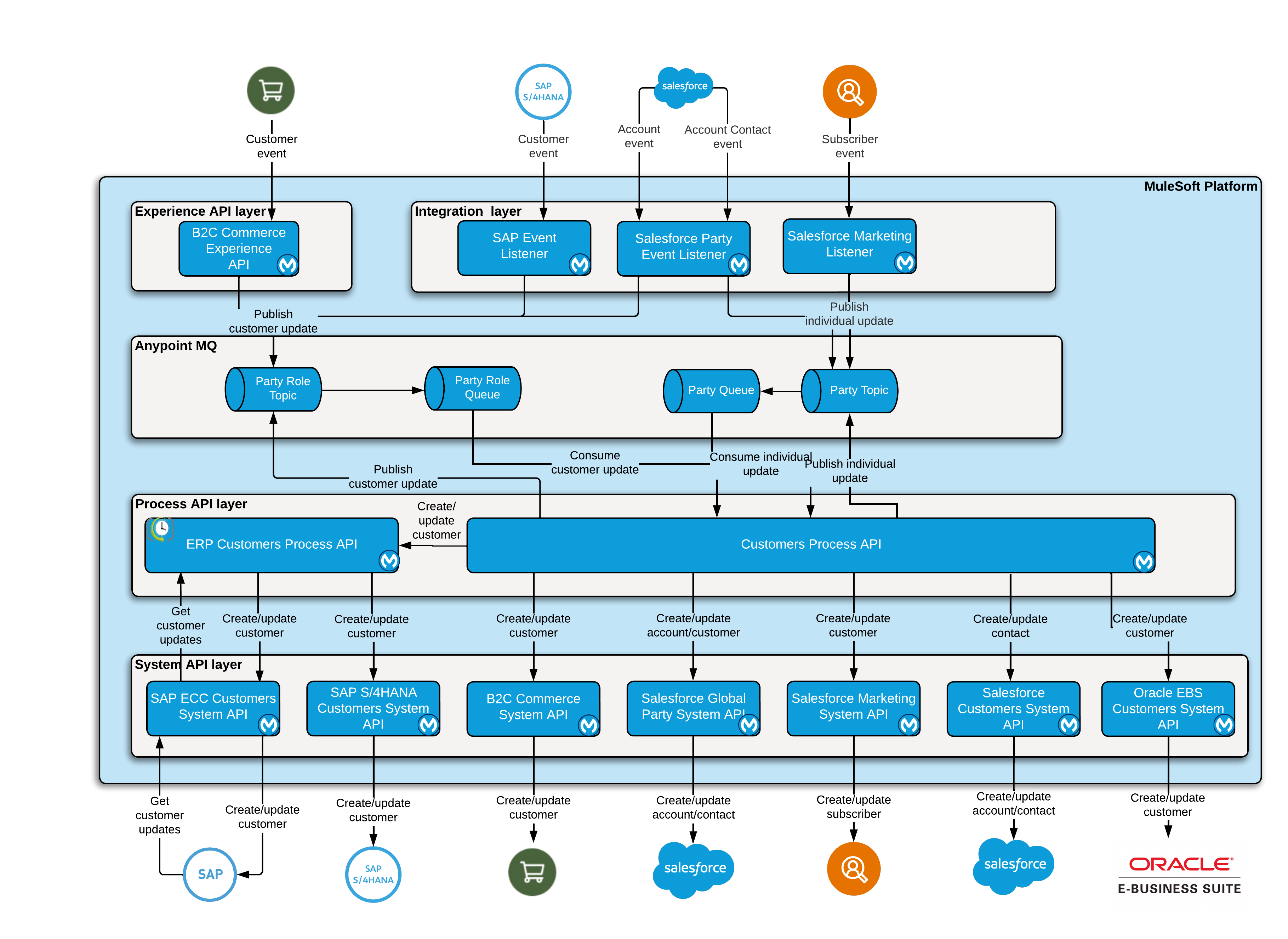

High-level architecture


Activity diagram

The diagram below illustrates the sequence of processing customer profile updates to Salesforce core and other target systems when a customer is created or updated in B2C Commerce. Similar logic is used for processing individual party updates as well.

The same sequence applies to updates originating from other external systems as well.


Processing logic

The primary handling and orchestration of customer updates will be implemented in the Customers Process API. The logic of this process for customers - which is similar for individuals - can be described as follows:

  1. Upsert customer to the Global Salesforce Party System API, in this case Salesforce core is used as the global data store.
  2. Upsert customers to other target systems that are configured in the Customers Process API.
  3. Update external identifiers in the global data store
  4. Update the originating system with the global identifiers

Successful outcome

After successfully completing the update processing for all target systems, the following conditions will be met:

  1. Salesforce core holds the global copy of the customer and contact point information
  2. All target systems will hold at least some minimal representation of the same
  3. The entity created/updated in each system will reference the global identifier from Salesforce core
  4. Salesforce core holds a list of all external identifiers associated with the party, party role and contact point
  5. A complete 360 degree view of the customer can be constructed by first retrieving the global copy from Salesforce core, and then from all associated downstream systems

Customer profile sync from B2C Commerce

Overview

This use case records updates published from B2C Commerce via the sync cartridge into Salesforce core and other downstream systems.

Before you begin

bulb.png The Getting Started with MuleSoft Accelerators guide provides general information on getting started with the accelerator components. This includes instructions on setting up your local workstation for configuring and deploying the applications.

Workflow

  1. The use case is triggered when

    • A customer profile is created or updated in B2C Commerce
    • A customer profile is created in B2C Commerce during the order checkout process
  2. A sync cartridge invokes the B2C Commerce Experience API with the customer profile data.

  3. The B2C Commerce Experience API converts the customer profile data to the CIM format and places it in a queue
  4. The Customers Process API consumes the message from the queue and orchestrates the following by invoking the appropriate system APIs for each system:

    • Create or update the customer profile in Salesforce core with an associated global ID.
    • Create or update the customer profile in Marketing Cloud with an external ID that links to the global ID in Salesforce core.
    • Create or update the customer profile in SAP ECC with an external ID that links to the global ID in Salesforce core.
    • Create or update the customer profile in Salesforce core (includes Sales Cloud, Service Cloud and B2B Commerce) with an external ID that links to the global ID in Salesforce core.
    • Update the customer profile in Salesforce core with a list of external IDs that link the customer to their corresponding profiles in B2C Commerce, Marketing Cloud, Salesforce Sales Cloud, Salesforce Service Cloud, B2B Commerce and SAP ECC
    • Update B2C Commerce with the global ID from Salesforce core if it was not part of the customer data from step 2

Systems involved

  • Salesforce B2C Commerce Cloud
  • Salesforce Marketing Cloud
  • Salesforce Core (Sales, Service, B2B Commerce)
  • SAP ECC
  • SAP S/4HANA

Setup instructions

B2C Commerce configuration

Setup B2C Commerce with the sync cartridge to invoke the B2C Commerce Experience API when a customer profile is created or updated. The custom cartridge needs to be properly installed in the active site by a qualified B2C administrator or developer.

Follow the B2C setup guide for instructions on how to configure the target B2C Commerce instance for API access.

SAP Configuration

Follow the Custom BAPI setup instructions.

Salesforce configuration

Follow the Salesforce Customization Guide to create custom fields and enable Person Accounts.

Marketing Cloud configuration

Please see setup instructions in the Prerequisites tab of the Salesforce Marketing System API.


back to top

Customer profile sync from Salesforce

Overview

This use case records updates published from Salesforce into Salesforce core and other downstream systems.

Before you begin

bulb.png The Getting Started with MuleSoft Accelerators guide provides general information on getting started with the accelerator components. This includes instructions on setting up your local workstation for configuring and deploying the applications.

Workflow

  1. The use case is triggered when

    • A Person Account is created or updated in Salesforce
  2. An event is published to the Salesforce push topic which is picked up by the Accelerator Salesforce Party Event Listener with the Customer (Person Account) data.

  3. The Accelerator Salesforce Party Event Listener converts the Person Account data to the CIM format and places it in a queue
  4. The Customers Process API consumes the message from the queue and orchestrates the following by invoking the appropriate system APIs for each system:

    • Create or update the customer profile in Salesforce core with an associated gloabl ID.
    • Create or update the customer profile in Marketing Cloud with an external ID that links to the gloabl ID in Salesforce core.
    • Create or update the customer profile in SAP ECC with an external ID that links to the gloabl ID in Salesforce core.
    • Create or update the customer profile in B2C Commerce with an external ID that links to the global ID in Salesforce core.
    • Update the customer profile in Salesforce core with a list of external IDs that link the customer to their corresponding profiles in B2C Commerce, Marketing Cloud, Salesforce Sales Cloud, Salesforce Service Cloud, B2B Commerce and SAP ECC
    • Update Salesforce with the gloabl ID from Salesforce core if it was not part of the person account data from step 2

Systems involved

  • Salesforce B2C Commerce Cloud
  • Salesforce Marketing Cloud
  • Salesforce Core (Sales, Service, B2B Commerce)
  • Salesforce core
  • SAP ECC

Setup instructions

Salesforce configuration

  • Create custom fields as described in the Salesforce Customization Guide
  • Enable Person Accounts as described here
  • Create a push topic on the Account object as described in the README in the Accelerator Salesforce Party Event Listener
  • Obtain ID of the Service Account User that is used in Salesforce Customers System API and use it to replace the LastModifiedBy value in the pushtopic query. This is to filter out cyclical updates (i.e., updates generated by Salesforce Customer System API)

SAP Configuration

Follow the Custom BAPI setup instructions.

Marketing Cloud configuration

Follow the setup instructions in the Prerequisites tab of the Salesforce Marketing System API.


back to top

Customer profile sync from Marketing Cloud

Overview

This use case records updates published from Marketing Cloud into Salesforce core and other downstream systems.

Before you begin

bulb.png The Getting Started with MuleSoft Accelerators guide provides general information on getting started with the accelerator components. This includes instructions on setting up your local workstation for configuring and deploying the applications.

Workflow

  1. The use case is triggered when a subscriber is created in Marketing Cloud
  2. An event is published by Marketing Cloud which is picked up by the Salesforce Marketing Listener with the Individual data.
  3. The Salesforce Marketing Listener converts the individual data to the CIM format and places it in a queue
  4. The Customers Process API consumes the message from the queue and orchestrates the following by invoking the appropriate system APIs for each system:

    • Create or update the individual profile in Salesforce core with an associated global ID.
    • Update the individual profile in Salesforce core with the external ID that links the individual to the corresponding subscriber profile in Marketing Cloud
    • Update Marketing Cloud with the global ID from Salesforce core if it was not part of the individual data from step 2

Systems involved

  • Salesforce Marketing Cloud
  • Salesforce core

Setup instructions

Marketing Cloud configuration

Follow the setup instructions in the Prerequisites tab of the Salesforce Marketing System API.

Salesforce core configuration

Follow the setup instructions in the Prerequisites tab of the Accelerator Salesforce Global Party System API.


back to top

Customer profile sync from SAP

Overview

This use case records updates made in SAP via the ERP Customers Process API into Salesforce core and other downstream systems.

Before you begin

bulb.png The Getting Started with MuleSoft Accelerators guide provides general information on getting started with the accelerator components. This includes instructions on setting up your local workstation for configuring and deploying the applications.

Workflow

  1. The ERP Customers Process API polls SAP for customer updates on a periodic basis
  2. The ERP Customers Process API converts the customer profile data to the CIM format and places it in a queue
  3. The Customers Process API consumes the message from the queue and orchestrates the following by invoking the appropriate system APIs for each system:

    • Create or update the customer profile in Salesforce core with an associated global ID.
    • Create or update the customer profile in Marketing Cloud with an external ID that links to the global ID in Salesforce core.
    • Create or update the customer profile in SAP ECC with an external ID that links to the global ID in Salesforce core.
    • Create or update the customer profile in Salesforce core (includes Sales Cloud, Service Cloud and B2B Commerce) with an external ID that links to the global ID in Salesforce core.
    • Update the customer profile in Salesforce core with a list of external IDs that link the customer to their corresponding profiles in B2C Commerce, Marketing Cloud, Salesforce Sales Cloud, Salesforce Service Cloud, B2B Commerce and SAP ECC
    • Update B2C Commerce with the global ID from Salesforce core if it was not part of the customer data from step 2

Systems involved

  • Salesforce B2C Commerce Cloud
  • Salesforce Marketing Cloud
  • Salesforce Core (Sales, Service, B2B Commerce)
  • Salesforce core
  • SAP ECC

Setup instructions

SAP Configuration

Follow the Custom BAPI setup instructions.

Salesforce configuration

Follow the Salesforce Customization Guide to create custom fields and enable Person Accounts.

Marketing Cloud configuration

Please see setup instructions in the Prerequisites tab of the Salesforce Marketing System API.

Salesforce core configuration

Follow the setup instructions in the Prerequisites tab of the Accelerator Salesforce Global Party System API.


back to top
