SAP custom BAPI setup guide - customer profile sync

The following provides guidance on how to use the custom BAPI code (e.g., ZBAPI_CUSTOMER_V3) for your SAP instance.

Important: You must complete the following instructions before proceeding to Use case 1 - Customer profile sync from SAP.

BAPI custom objects

You must create the following ABAP objects in order to use this custom BAPI, which are described below.

Data elements

  • Z_MASTER_ID

Structures

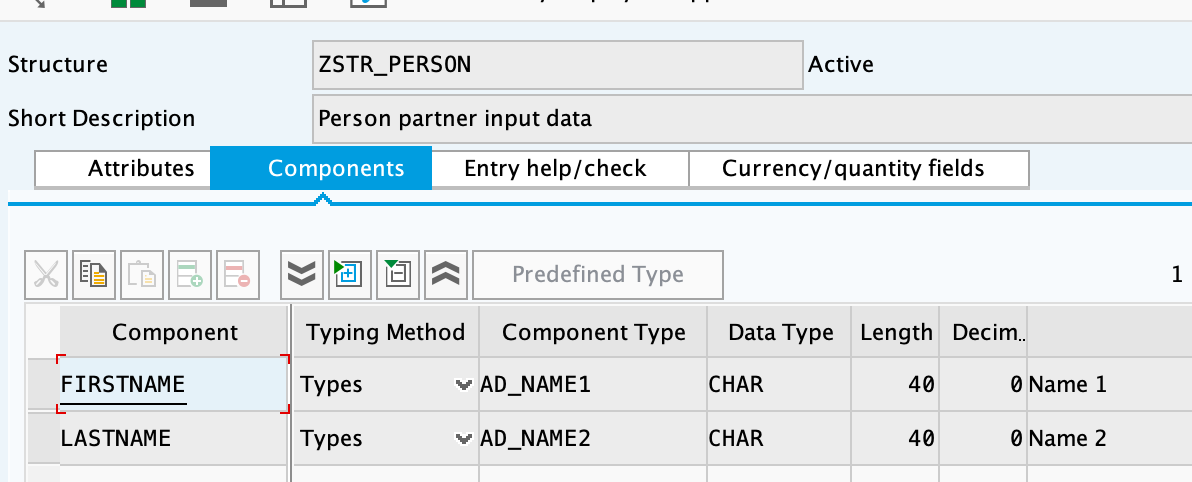

  • ZSTR_PERSON
  • ZSTR_ORGANIZATION

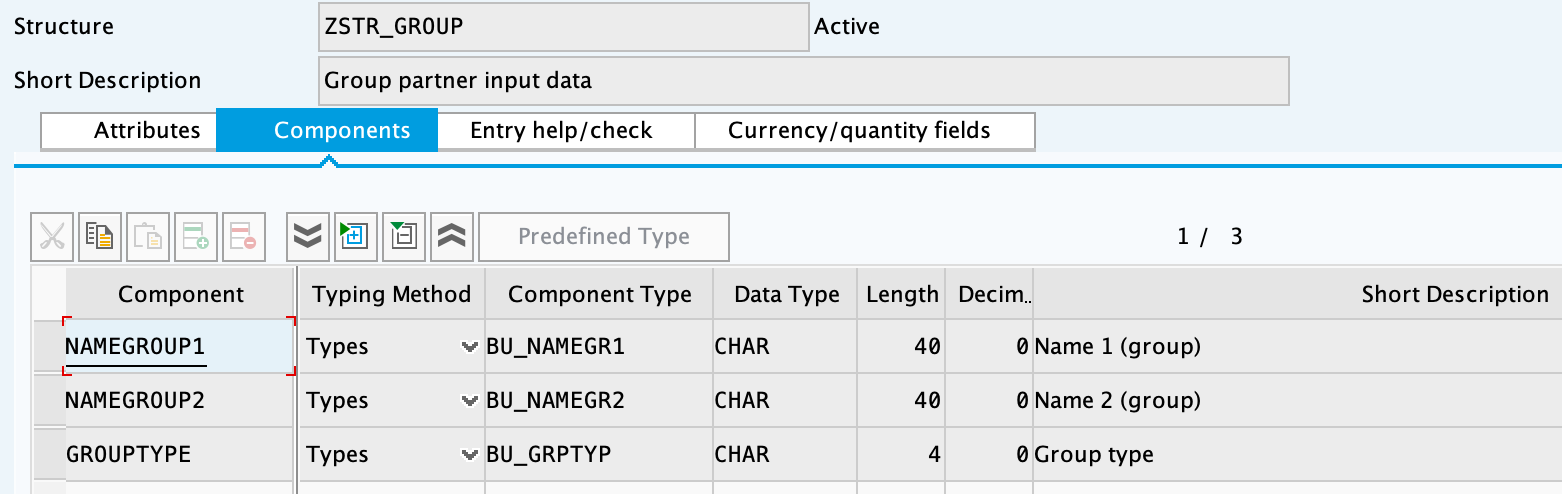

  • ZSTR_GROUP
  • ZES_CUSTOMER

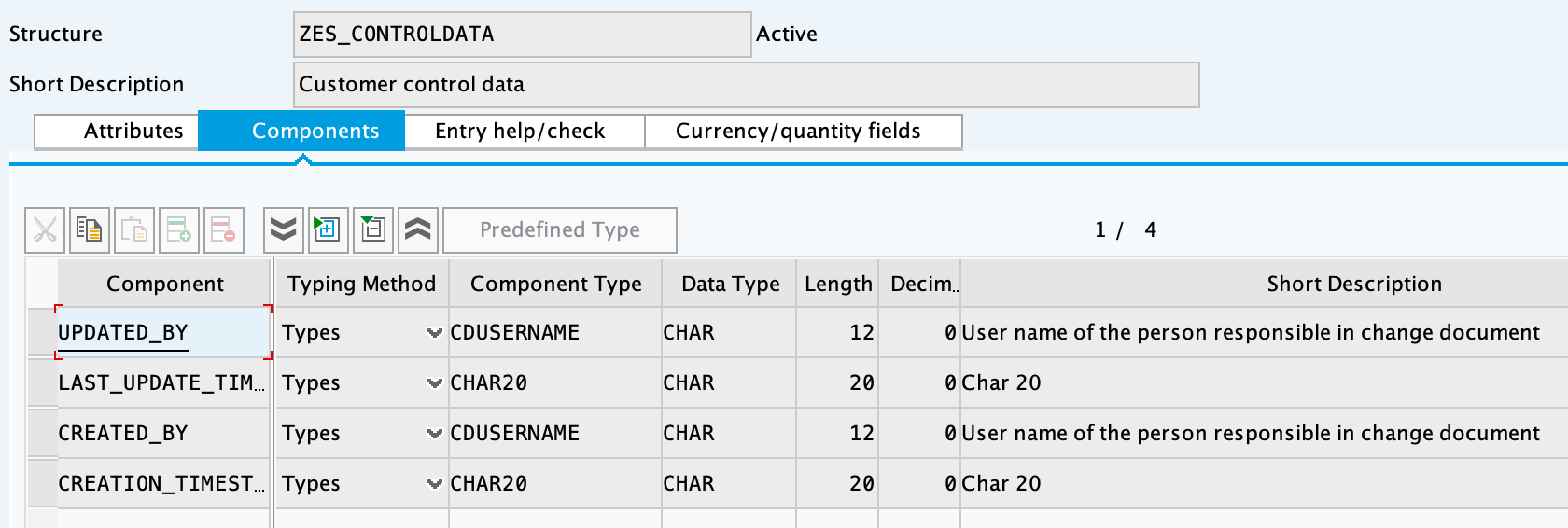

  • ZES_CONTROLDATA

Table types

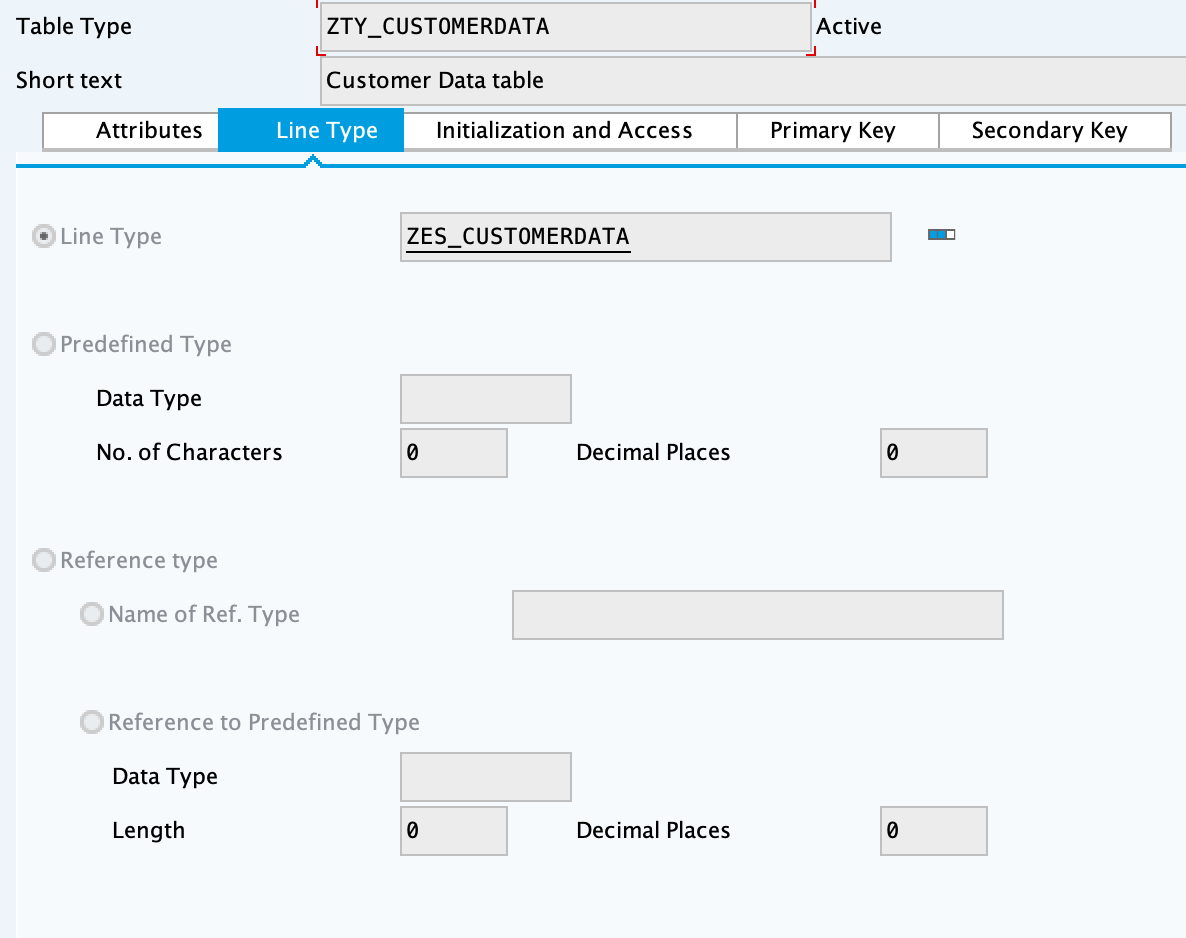

  • ZTY_CUSTOMER

Transparent tables

  • ZTT_CUSTOMER

Function groups

  • ZFG_CUSTOMER
  • ZFG_CUSTOMER2

Function modules

ZBAPI_CUSTOMER modules

  • ZBAPI_CUSTOMER
  • ZBAPI_CUSTOMER_CREATE
  • ZBAPI_CUSTOMER_CUSTOM_FIELDS
  • ZBAPI_CUSTOMER_UPDATE

More ZBAPI modules

  • ZBAPI_QUERY
  • ZBAPI_ADDR_QUERY
  • ZBAPI_QUERY_SAP
  • ZBAPI_CUST_QUERY
  • ZBAPI_CUSTOMER_CD

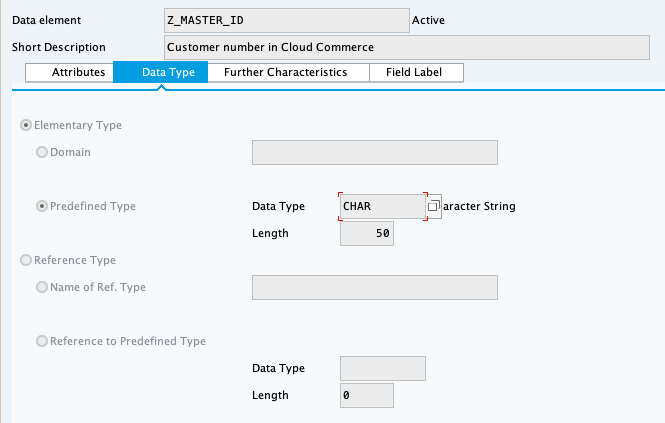

Creating data elements

ObjectHow to create

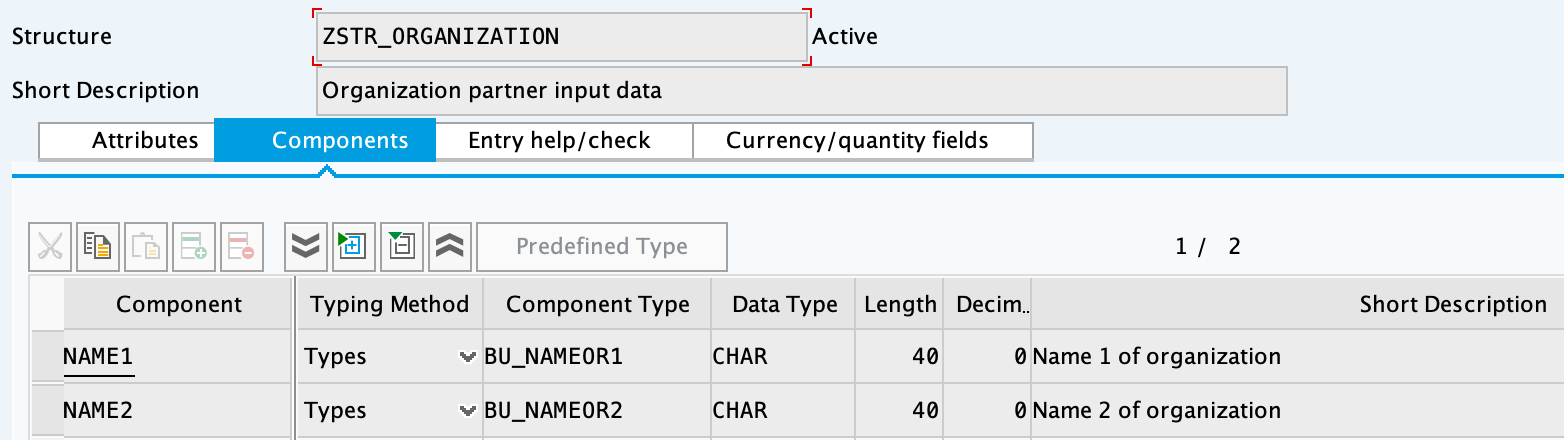

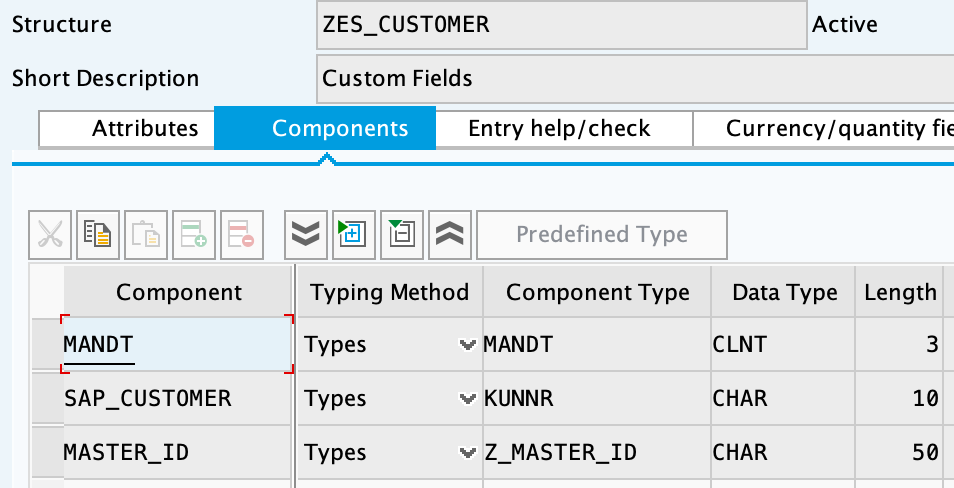

Creating structures

ObjectHow to create

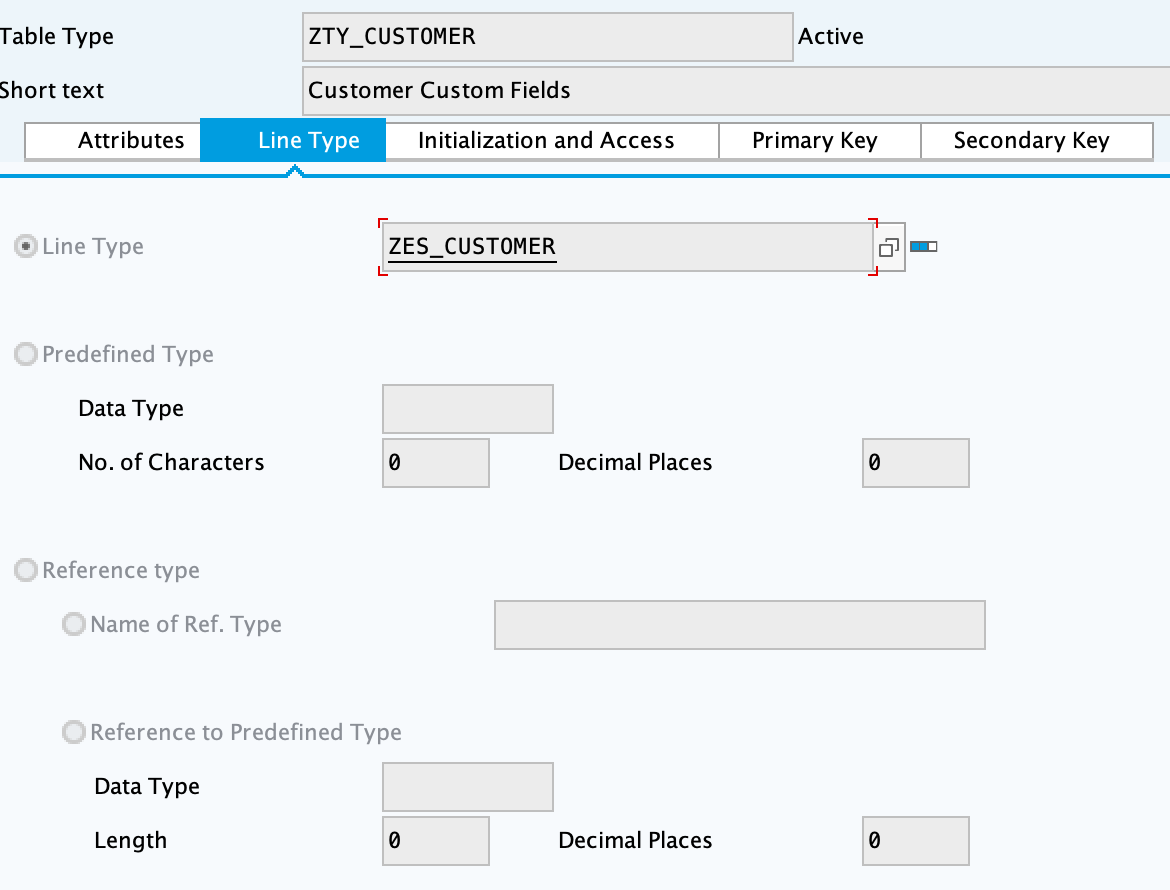

Creating table types

ObjectHow to create

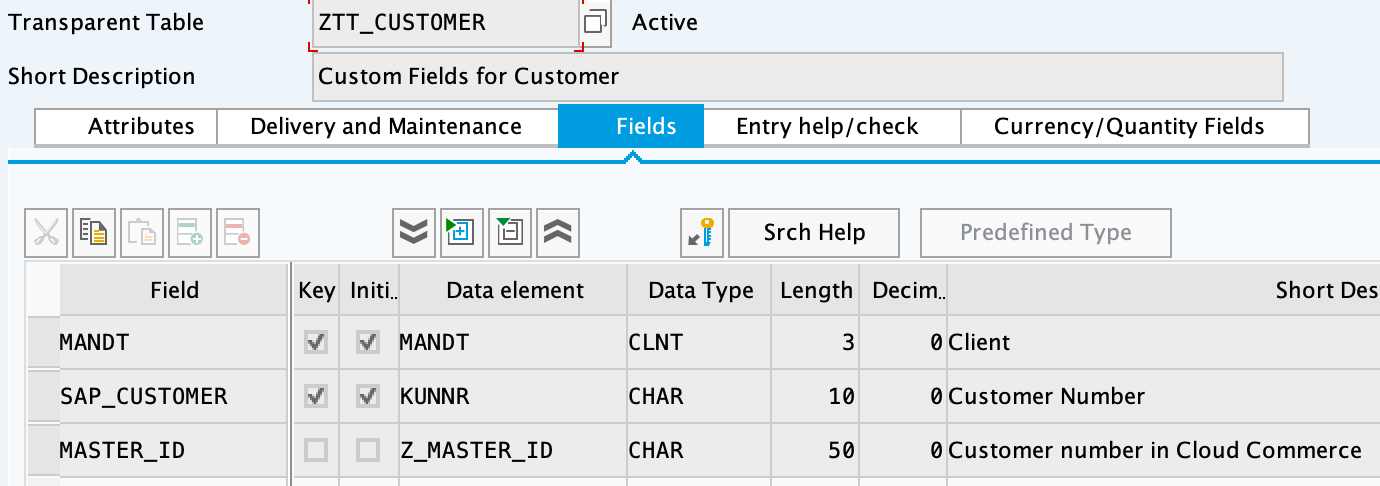

Creating transparent tables

ObjectHow to create



back to top

Creating function groups and function modules

ZBAPI Customer modules
  1. Create the function group "ZFG_CUSTOMER_V3".

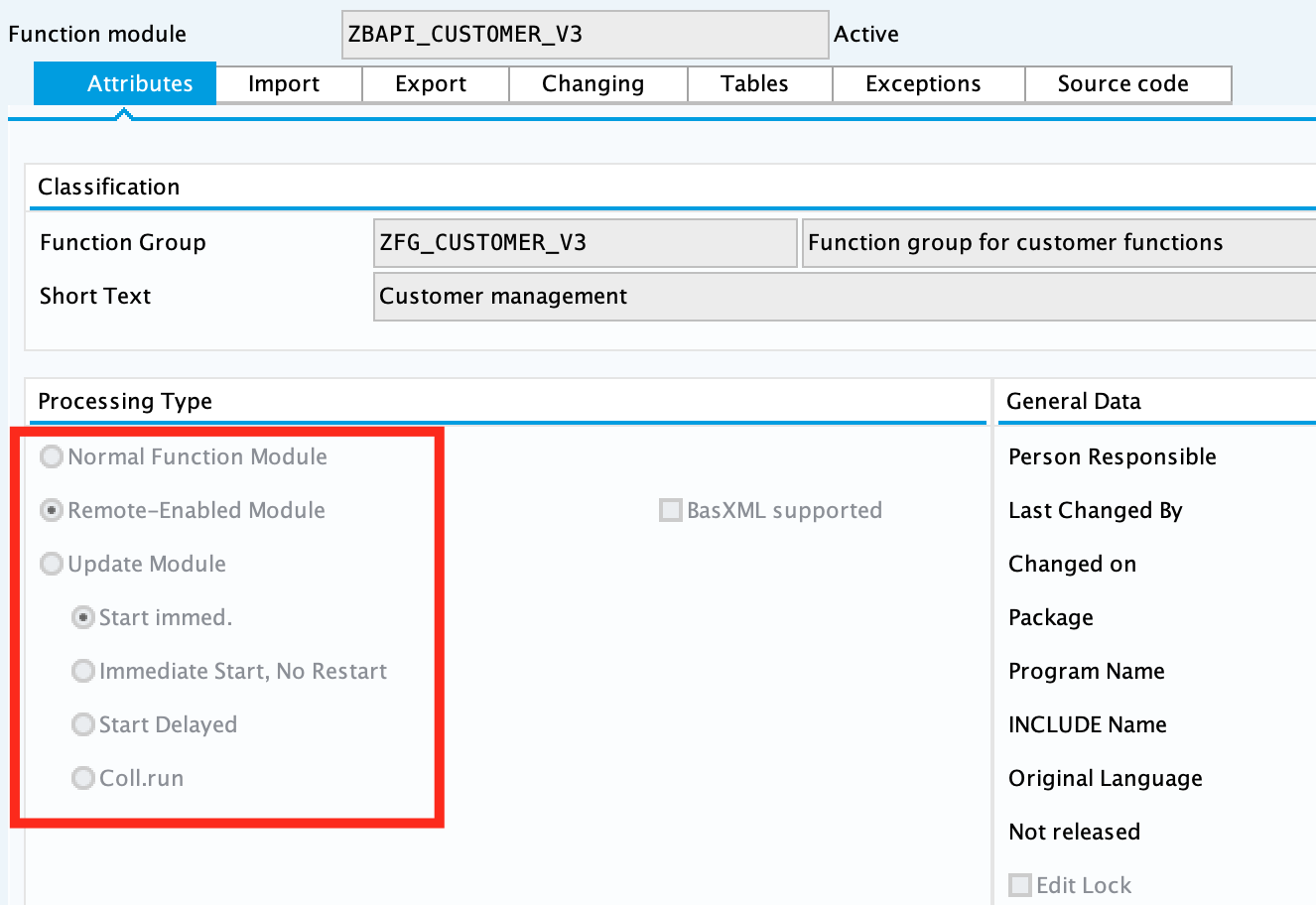

  2. Create the function module "ZBAPI_CUSTOMER_V3", using "Remote-enable module" as processing type:

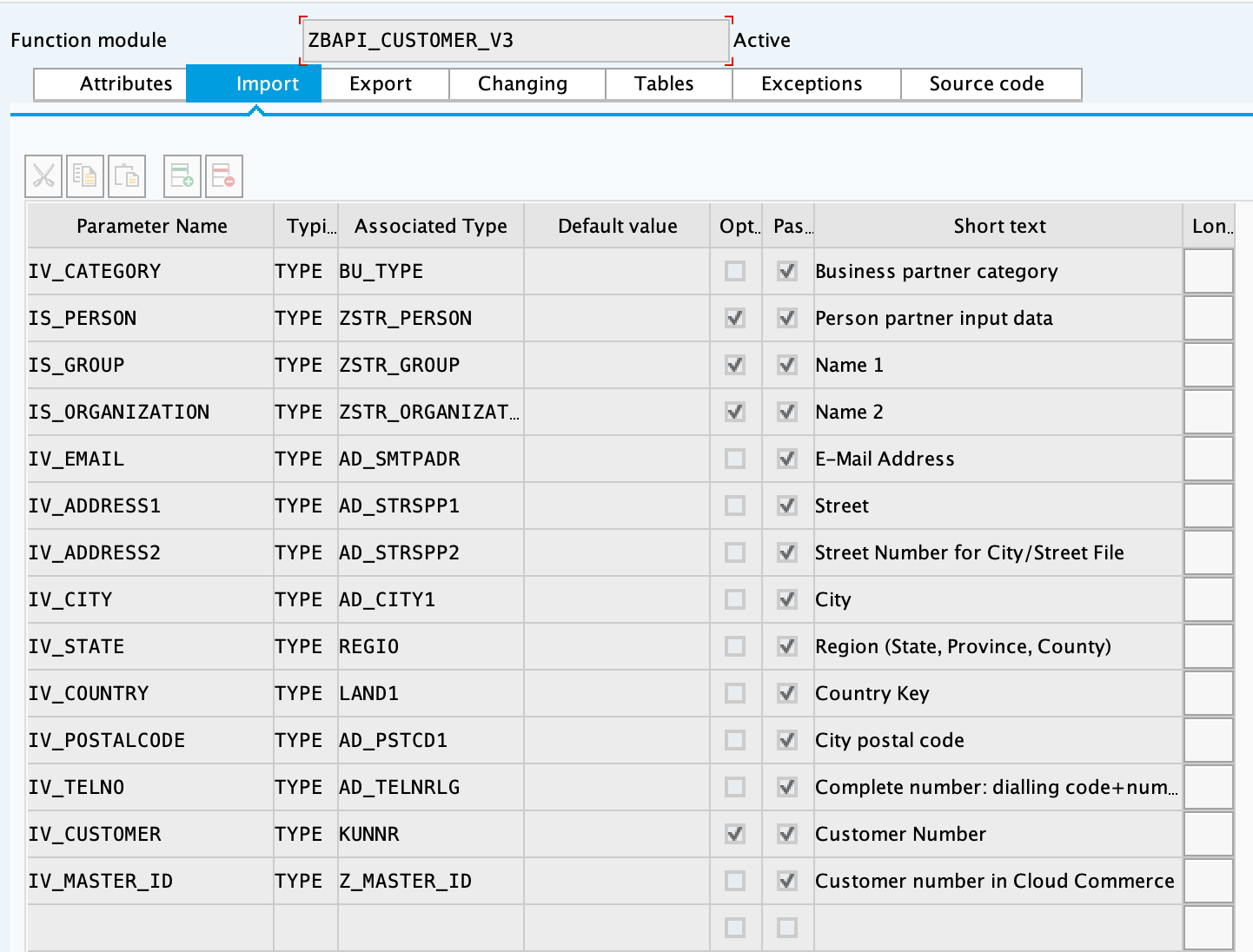

  3. Complete the import parameters with the following:


  4. Complete the export parameters with the following:


  5. Copy and paste the code from "ZBAPI_CUSTOMER_V3.txt".

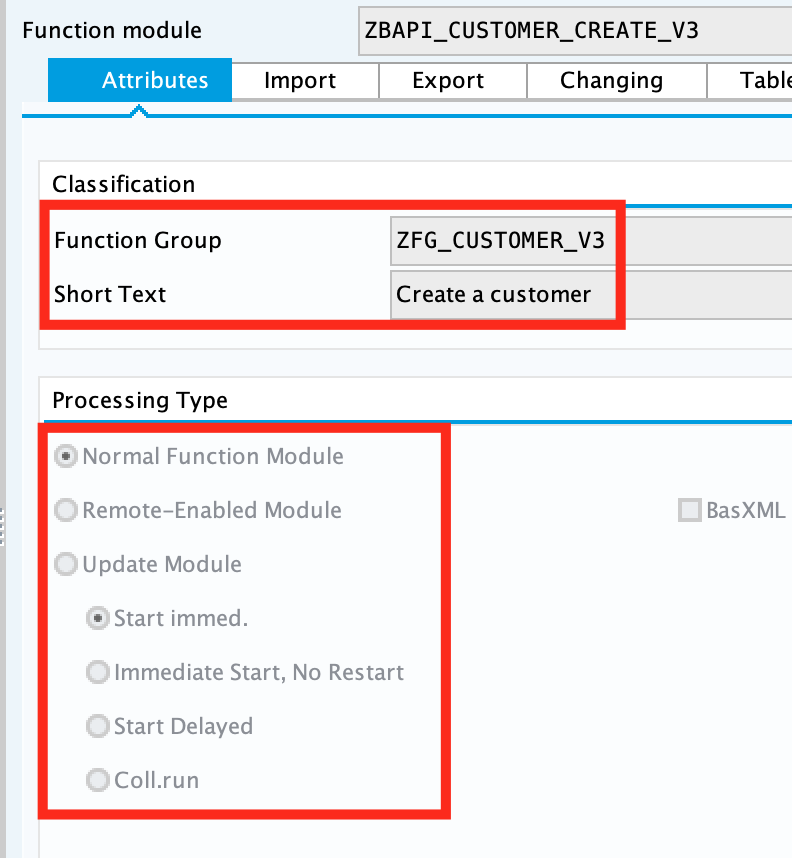

  6. Create the function module "ZBAPI_CUSTOMER_CREATE_V3":

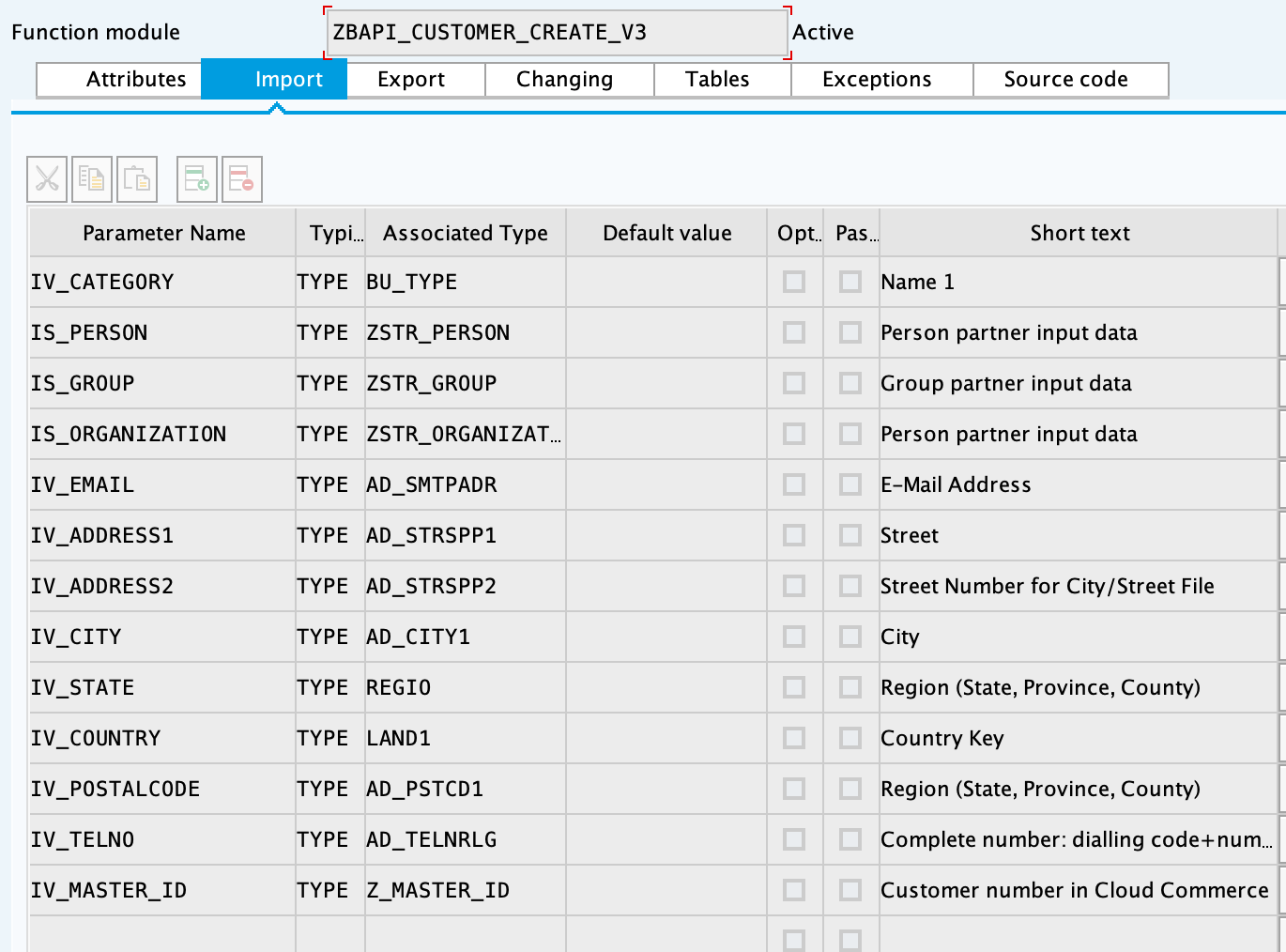

  7. Complete the import parameters with the following:

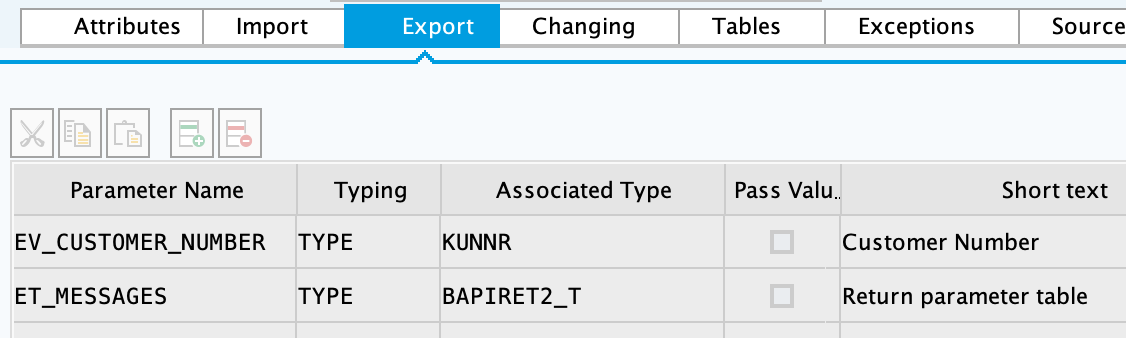

  8. Complete the export parameters with the following:


  9. Copy and paste the code from "ZBAPI_CUSTOMER_CREATE_V3.txt".

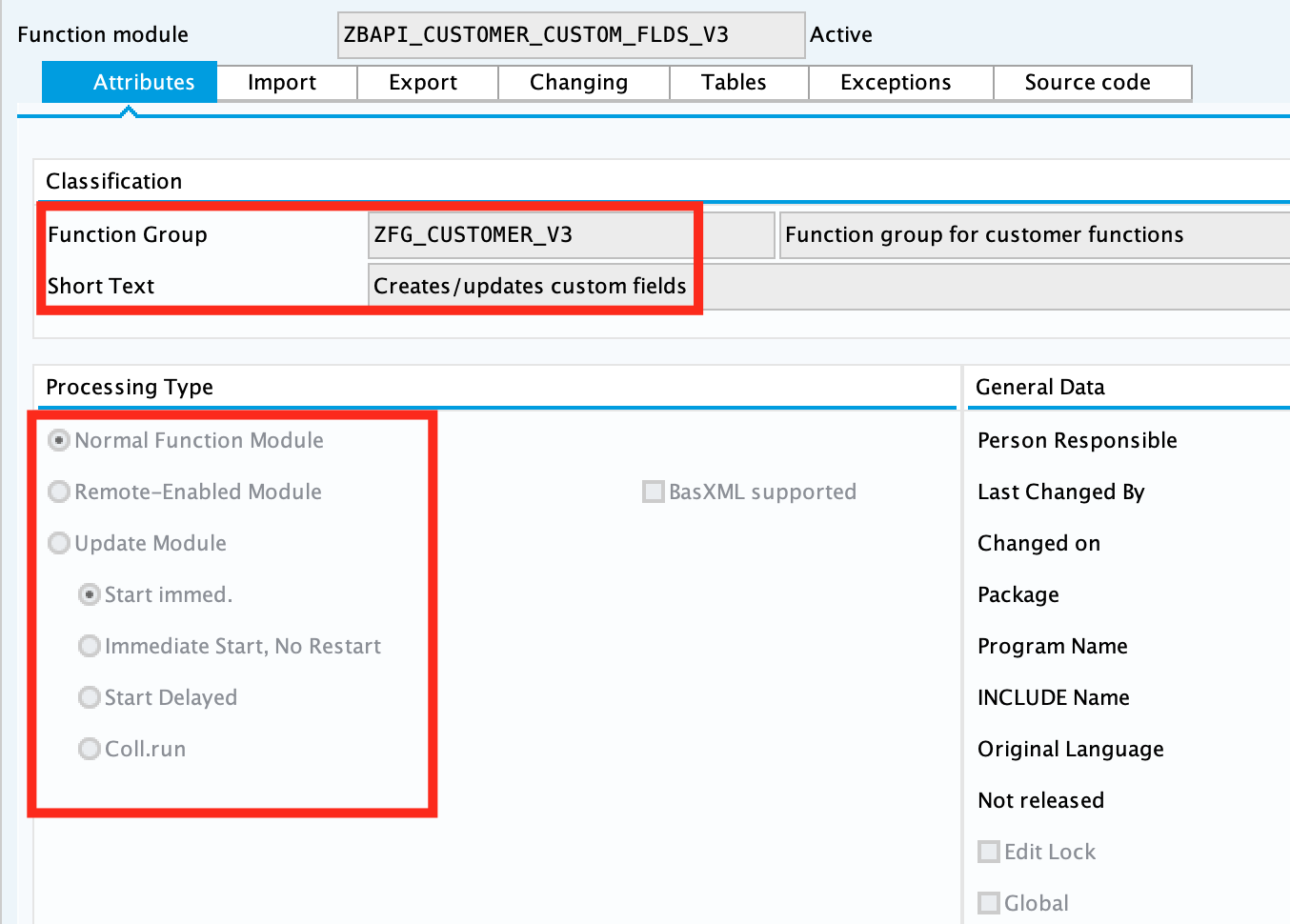

  10. Create the function module "ZBAPI_CUSTOMER_CUSTOM_FLDS_V3":

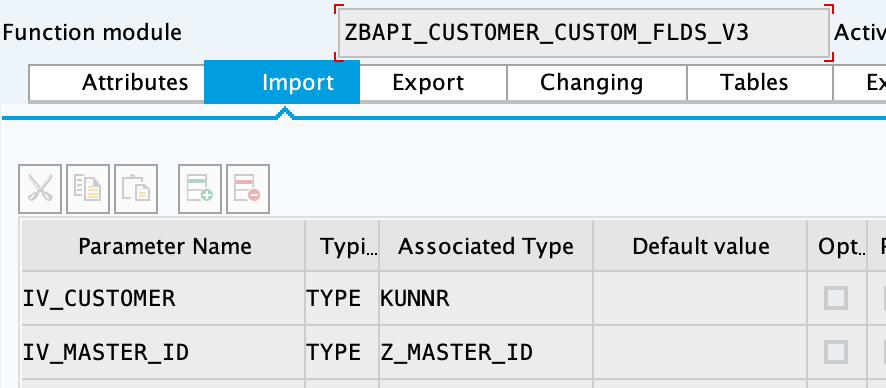

  11. Complete the import parameters with the following:


  12. Copy and paste the code from "ZBAPI_CUSTOMER_CUSTOM_FIELDS_V3.txt".

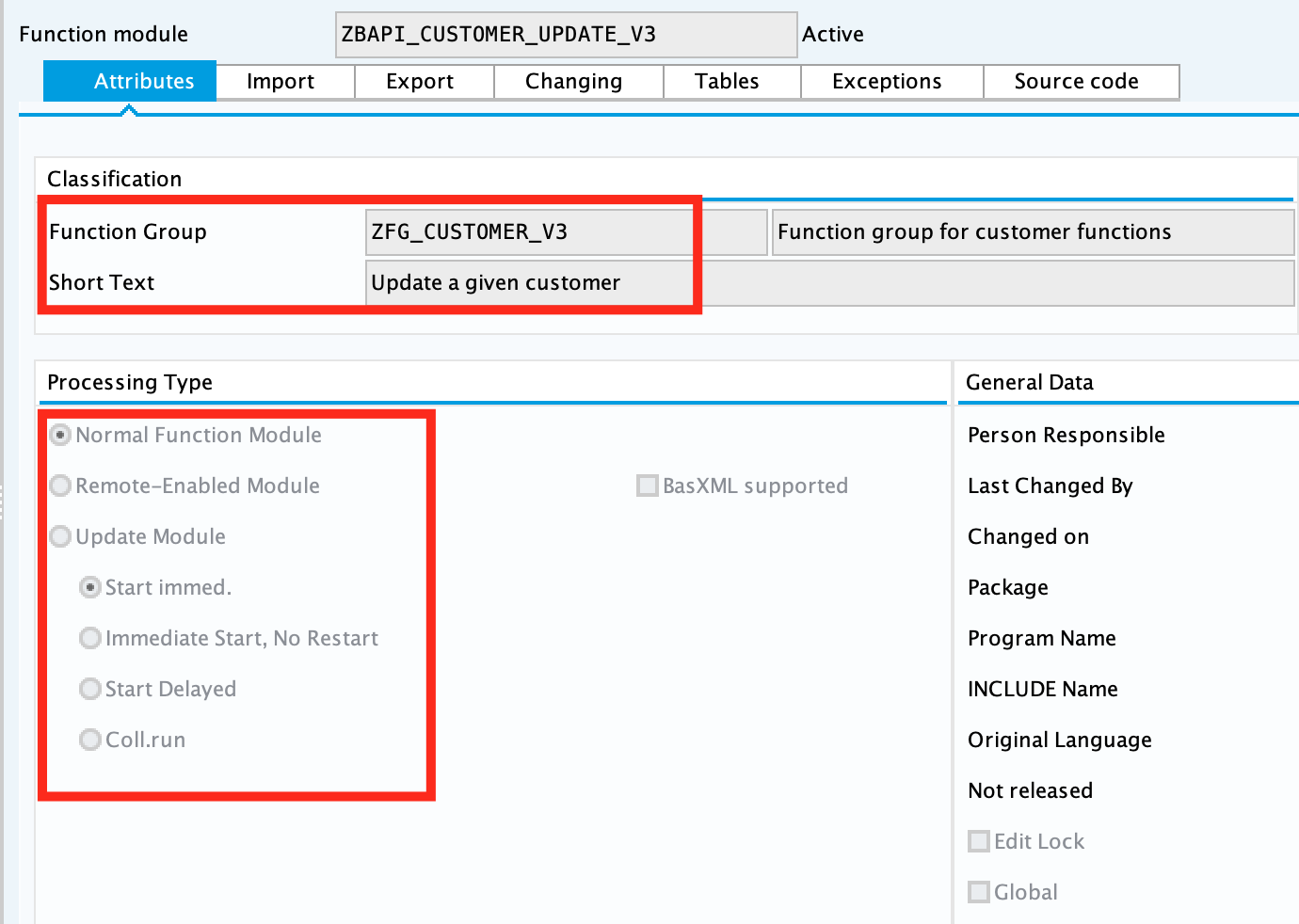

  13. Create the function module "ZBAPI_CUSTOMER_UPDATE_V3":

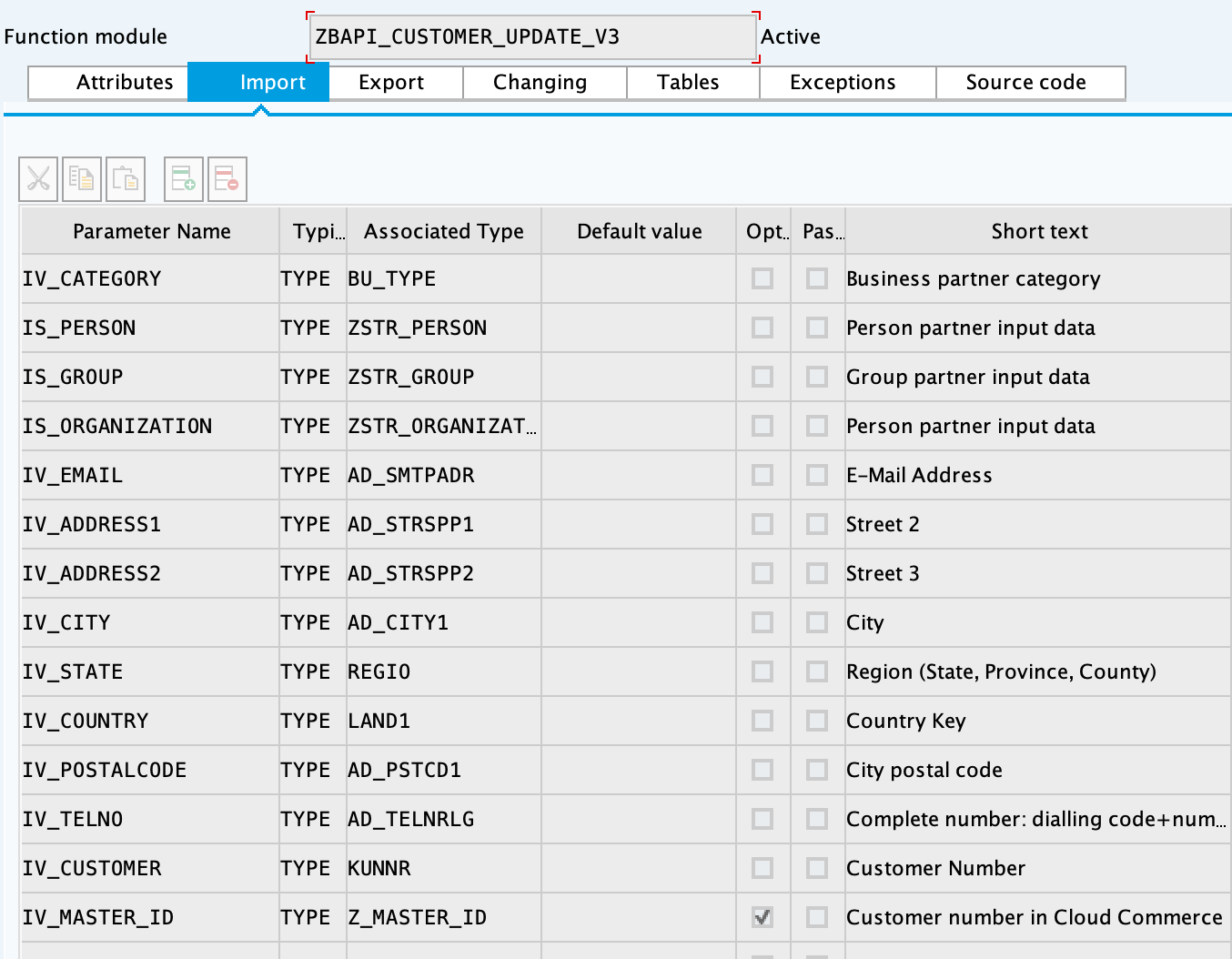

  14. Complete the import parameters with the following:

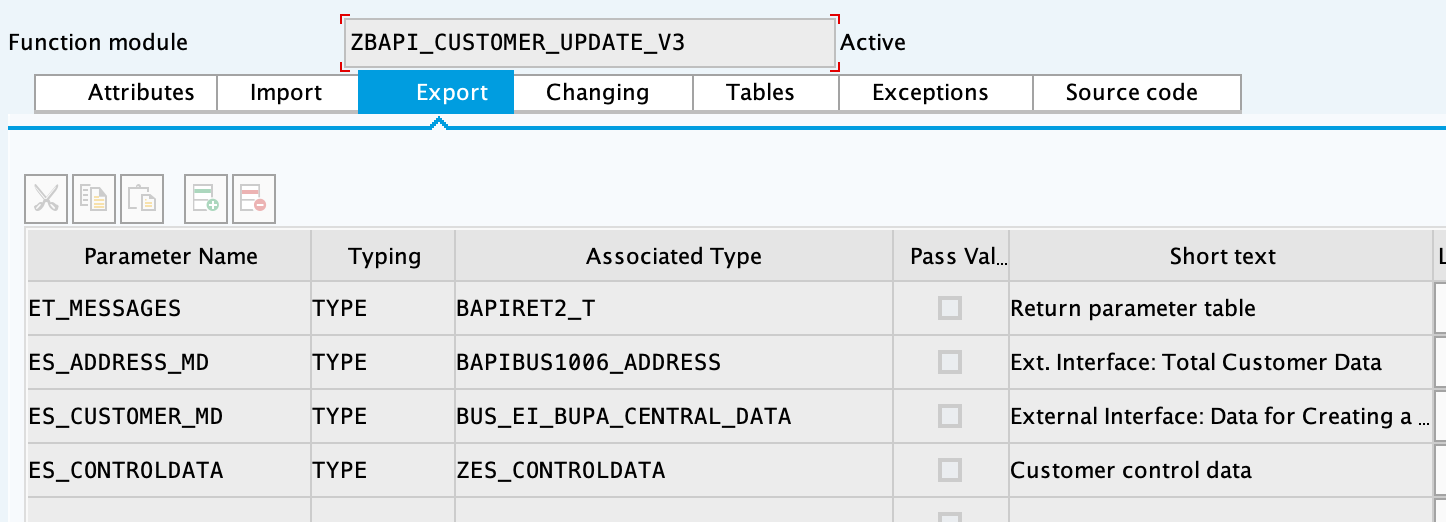

  15. Complete the export parameters with the following:


  16. Copy and paste the code from "ZBAPI_CUSTOMER_UPDATE_V3.txt".

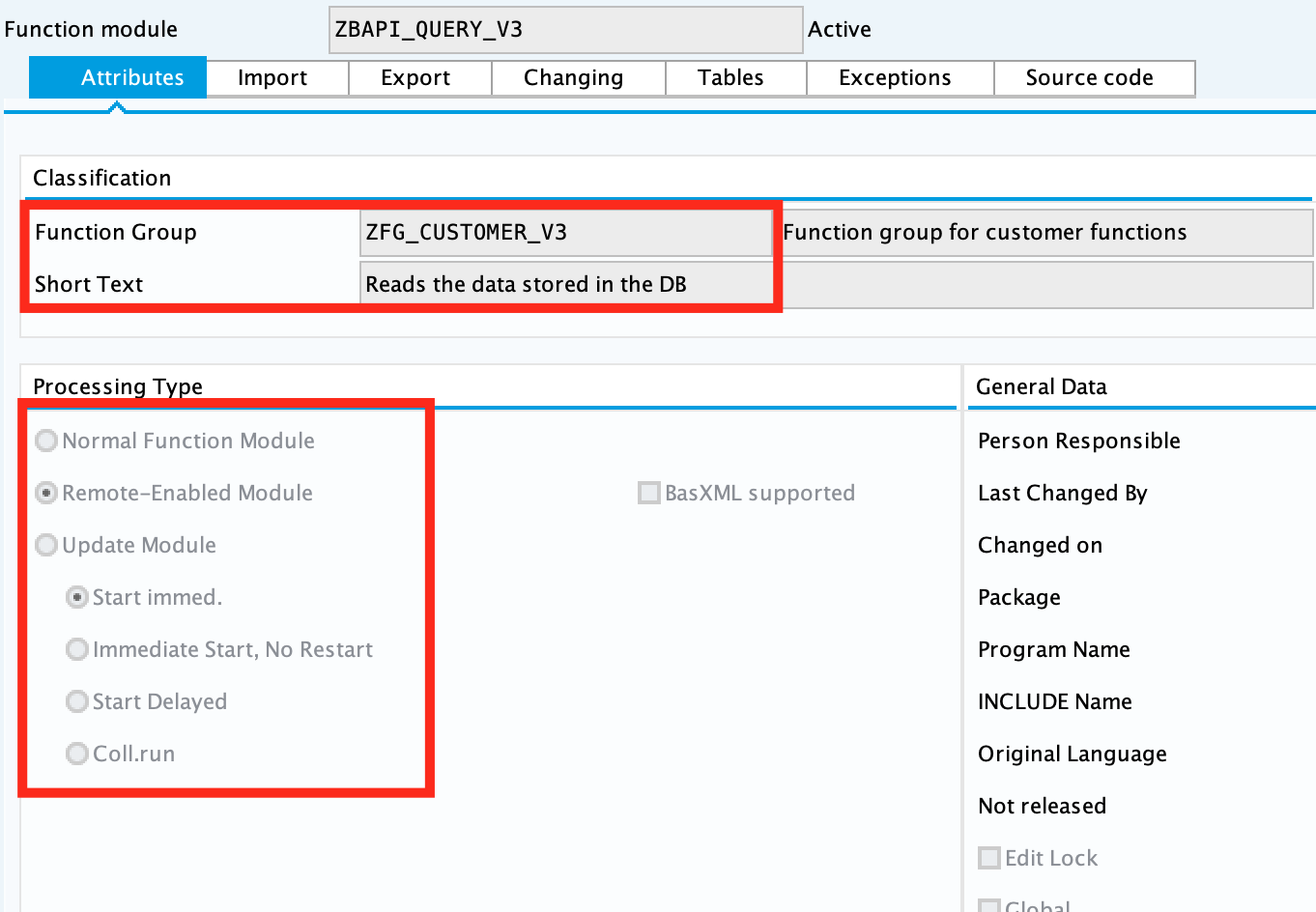

  17. Create the function module "ZBAPI_QUERY_V3", using "Remote-enable module" as processing type:

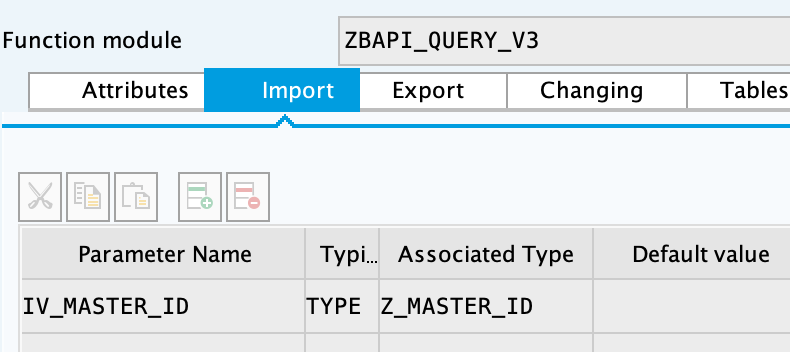

  18. Complete the import parameters with the following:

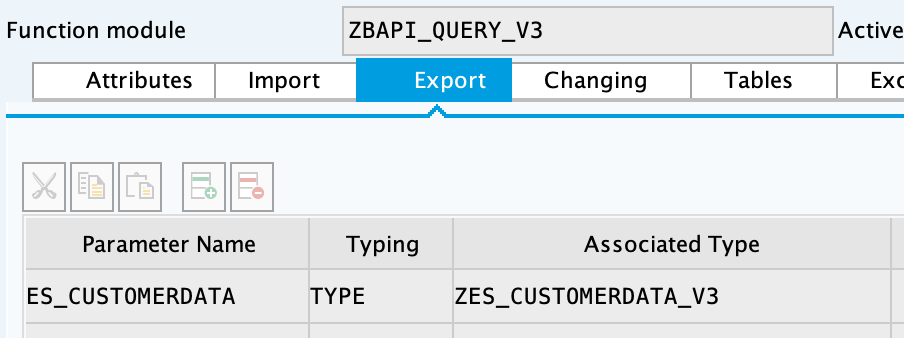

  19. Complete the export parameters with the following:


  20. Copy and paste the code from "ZBAPI_QUERY_V3.txt".

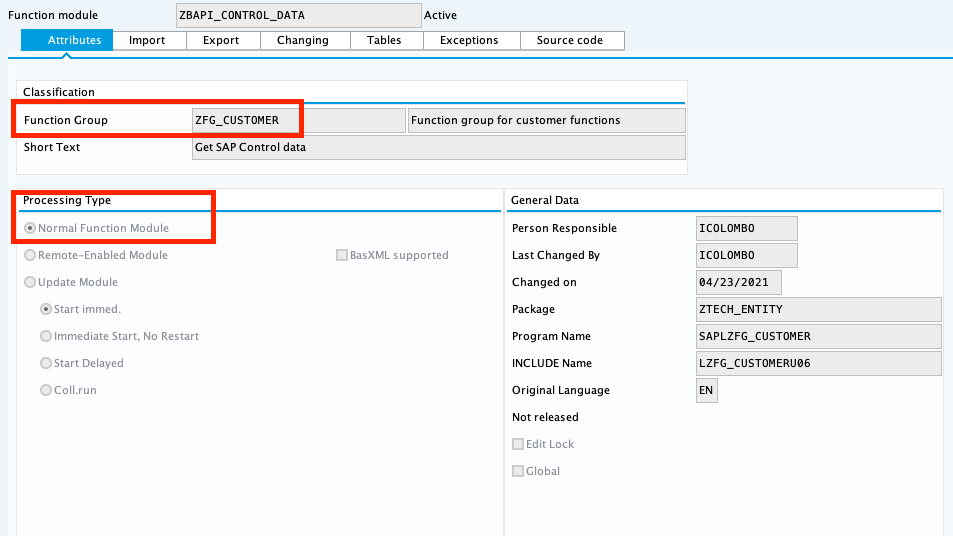

  21. Create the function module "ZBAPI_CONTROL_DATA_V3":

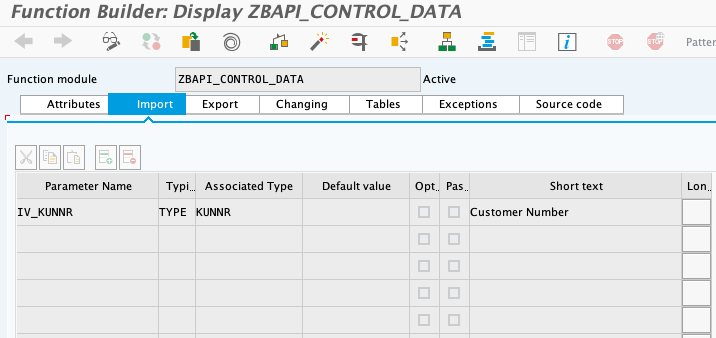

  22. Complete the import parameters with the following:


  23. Complete the export parameters with the following:


  24. Copy the source code from "ZBAPI_CONTROL_DATA_V3.txt".

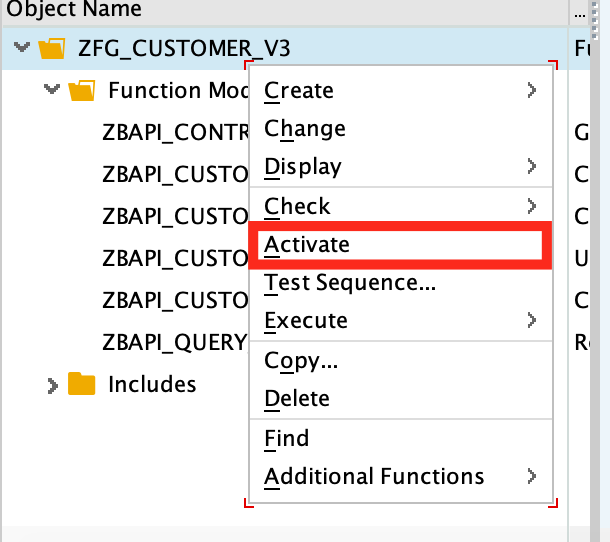

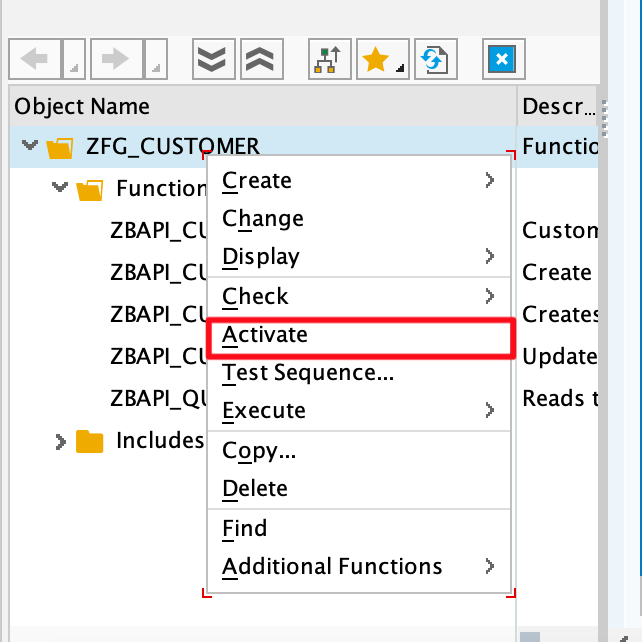

  25. Activate the entire function group by right-clicking on it in the tree and then selecting "Activate":


  26. Create the function group "ZFG_CUSTOMER2".

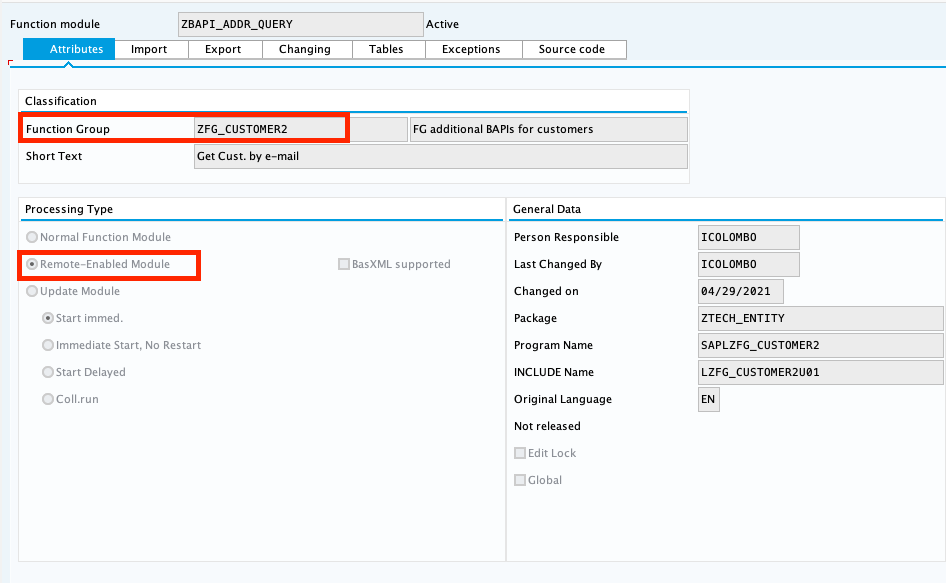

  27. Create the function module "ZBAPI_ADDR_QUERY", using "Remote-enable module" as processing type:

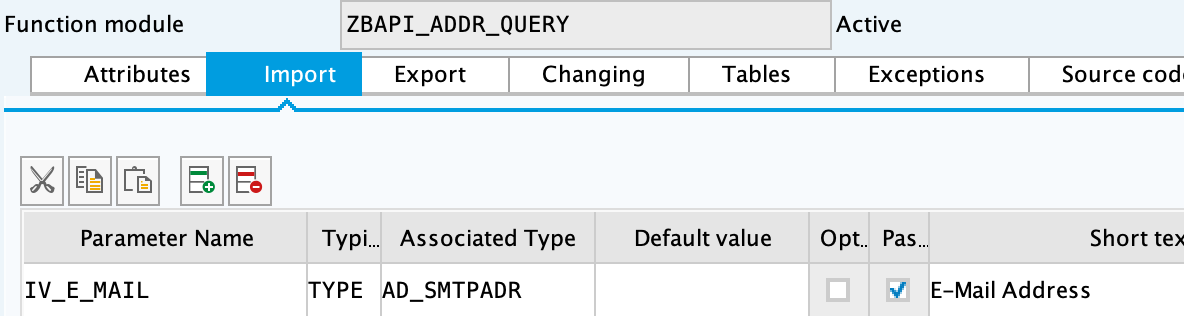

  28. Complete the import parameters with the following:


  29. Complete the export parameters with the following:


  30. Copy and paste the code from "ZBAPI_ADDR_QUERY.txt".

  31. Create the function module "ZBAPI_CONTROL_DATA" using the import parameters as follows:

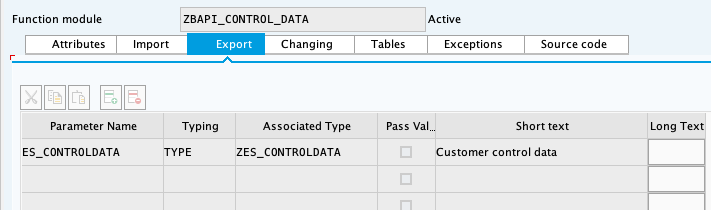

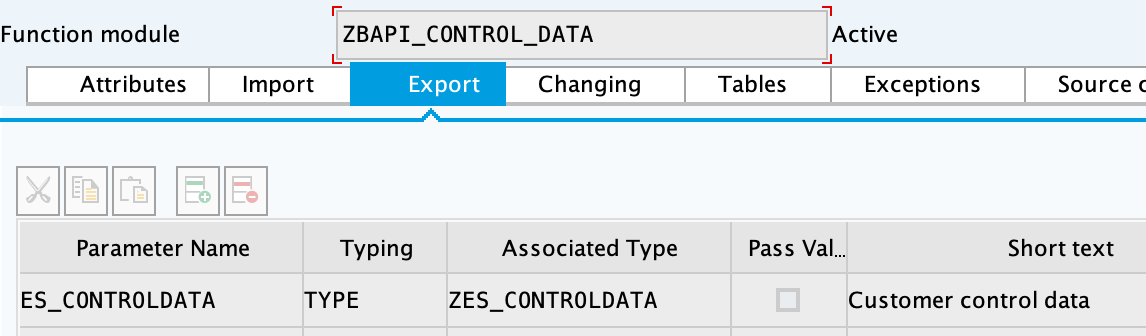

  32. Use the export parameters as in the following:


  33. Copy the source code from "ZBAPI_CONTROL_DATA.txt".

  34. Activate the entire function group by right-clicking on it in the tree and selecting 'Activate':


  35. Complete the following:
    1. Create a customer group ZSME (Logistics - General->Business Partner->Customer->Control->Define and Assign Customer Number Ranges)
    2. Create a partner group ZSME (Cross-Application Components->SAP Business Partner->Business Partner->Basic Settings->Number Ranges and Settings) from the transaction SPRO

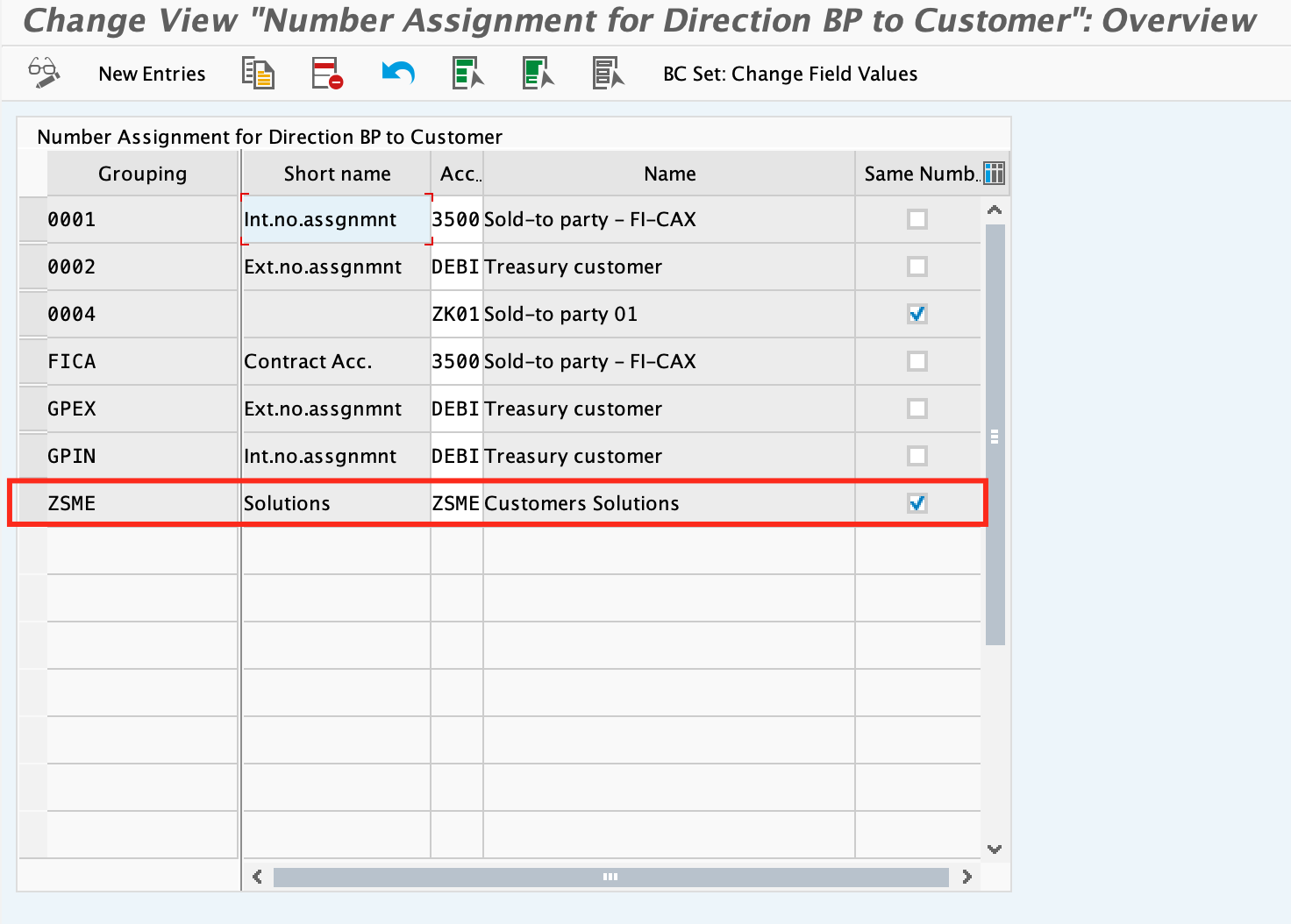

    3. Synchronize them from the same transaction (Cross-Application Components->Master Data Synchronization->Customer/Vendor Integration->Business Partner Settings->Settings for Customer Integration->Assign Keys->Define Number Assignment for Direction BP to Customer)




back to top

More ZBAPI modules

The following describes how to sufficiently set up your SAP instance in order to use the following custom BAPIs:

  • ZBAPI_ADDR_QUERY
  • ZBAPI_QUERY_SAP
  • ZBAPI_CUST_QUERY
  • ZBAPI_CUSTOMER_CD

To create ABAP custom objects, groups, and modules:

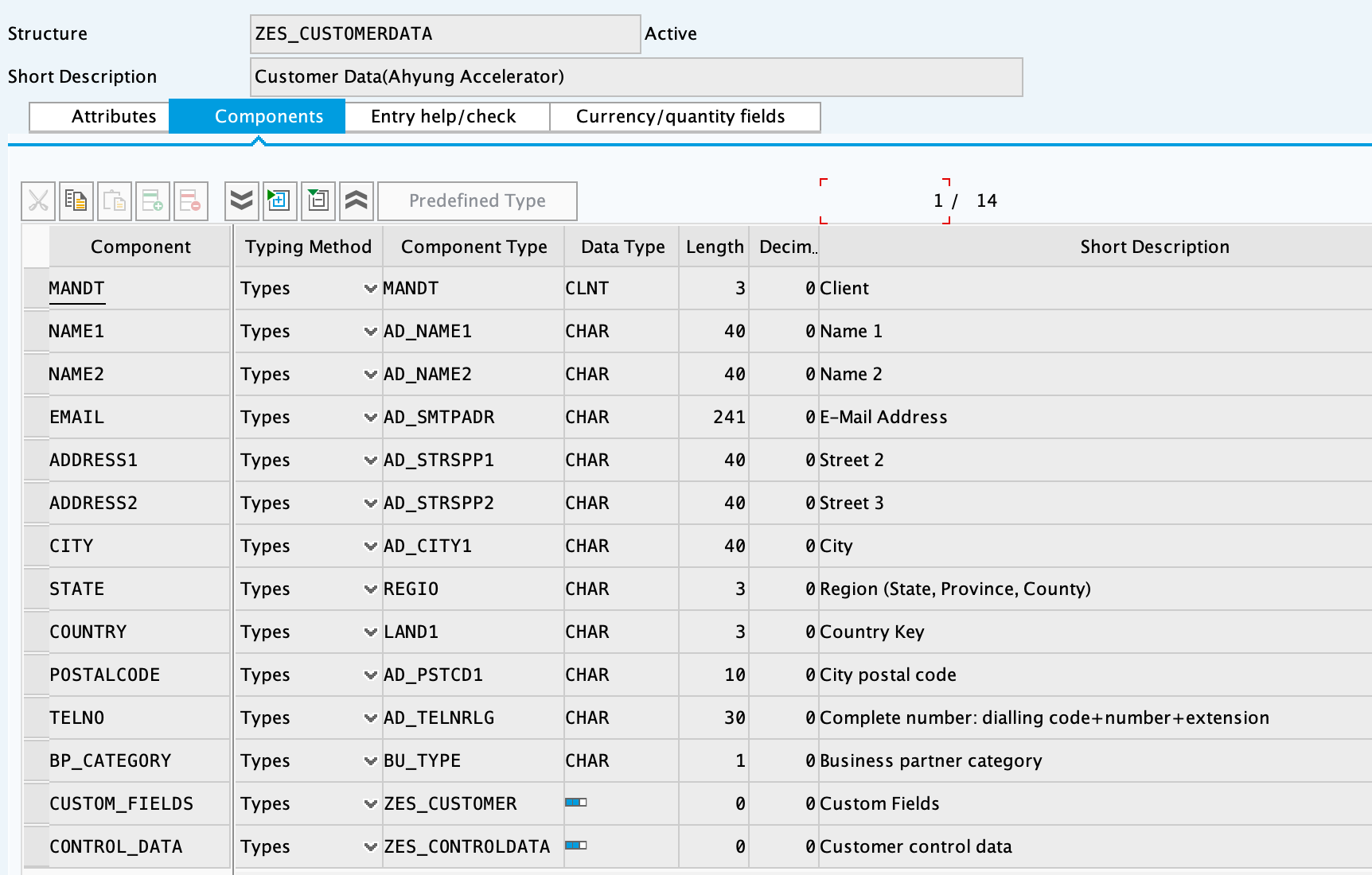

  1. Create the same dictionary objects created for the BAPI ZBAPI_CUSTOMER using the following structure/table type:



  2. Create the function group ZFG_CUSTOMER2.

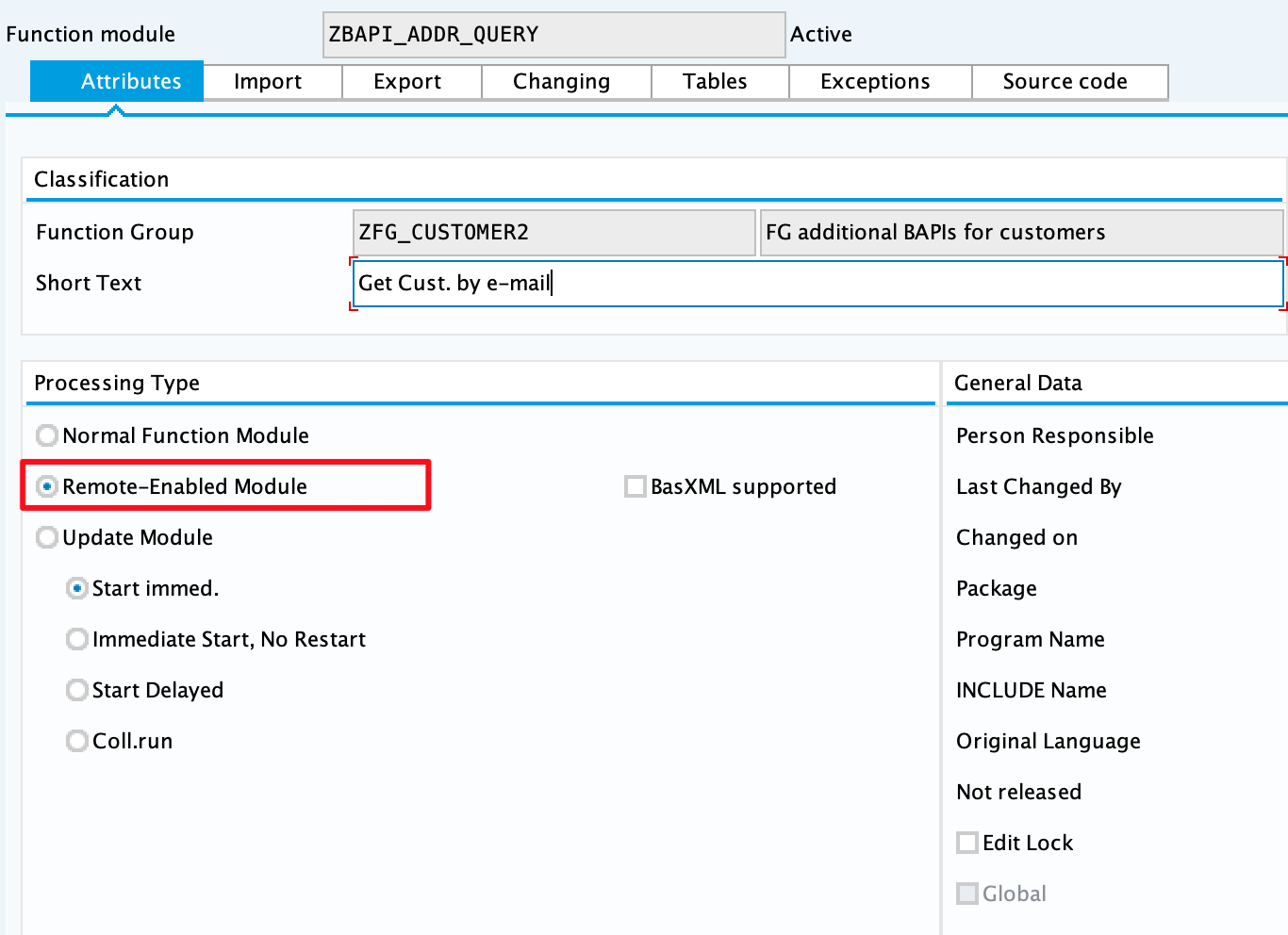

  3. Create the function module ZBAPI_ADDR_QUERY using 'Remote-enable module' as the processing type:

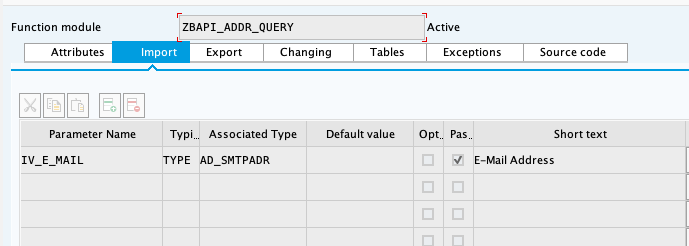

  4. Complete the import parameters with the following:

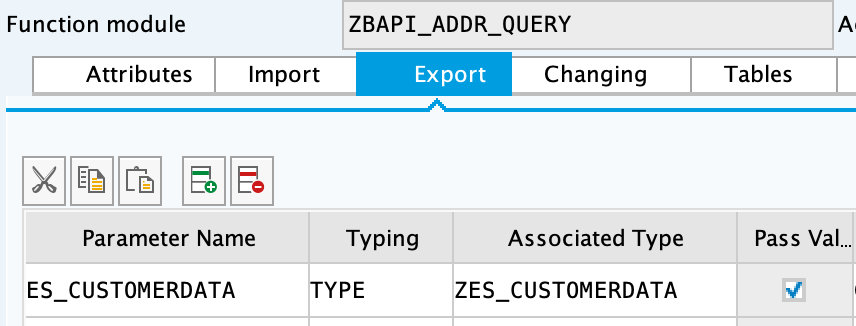

  5. Complete the export parameters with the following:


  6. Copy and paste the code from 'ZBAPI_ADDR_QUERY.txt'.

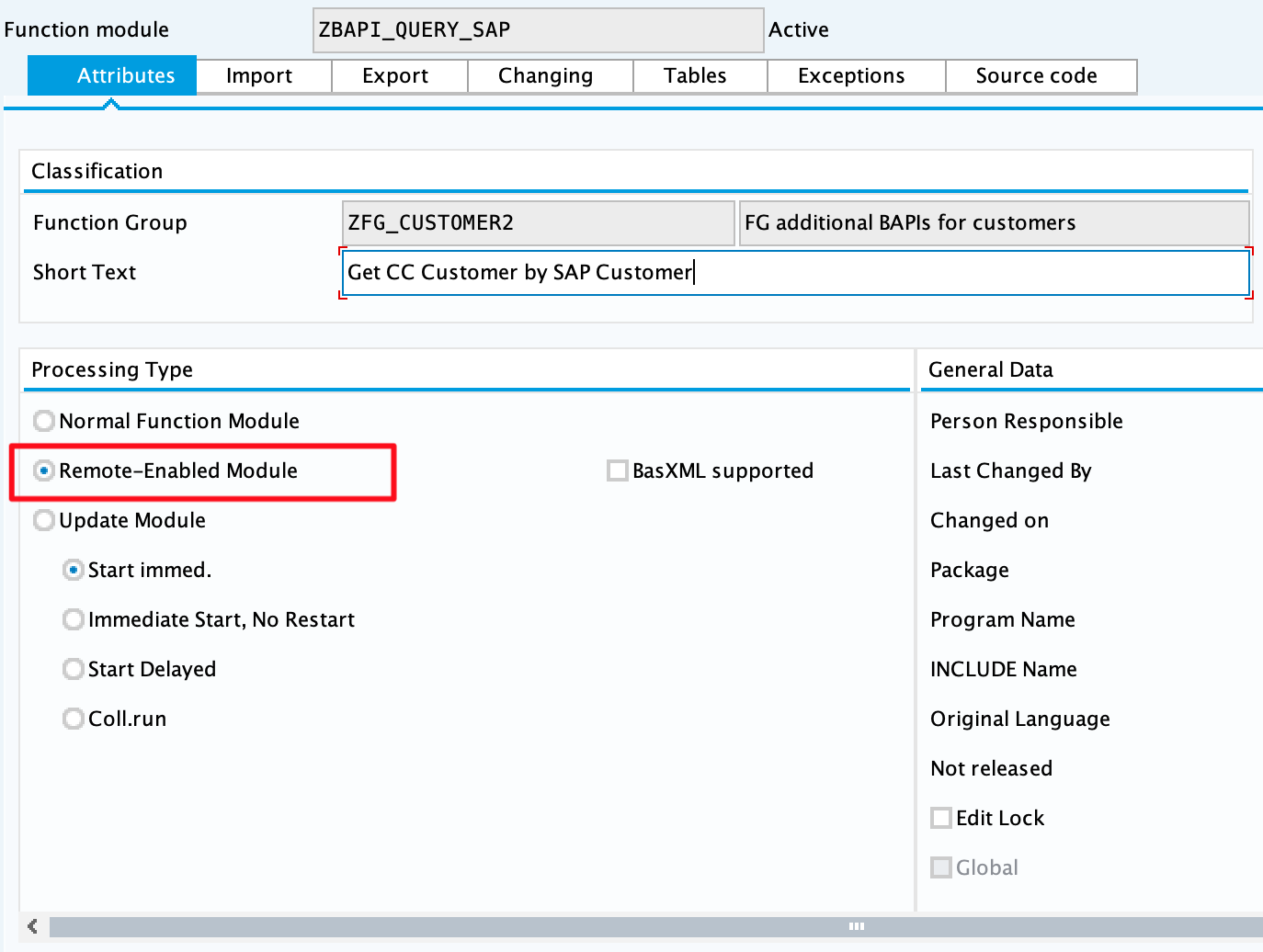

  7. Create the function module ZBAPI_ADDR_SAP using 'Remote-enable module' as the processing type:

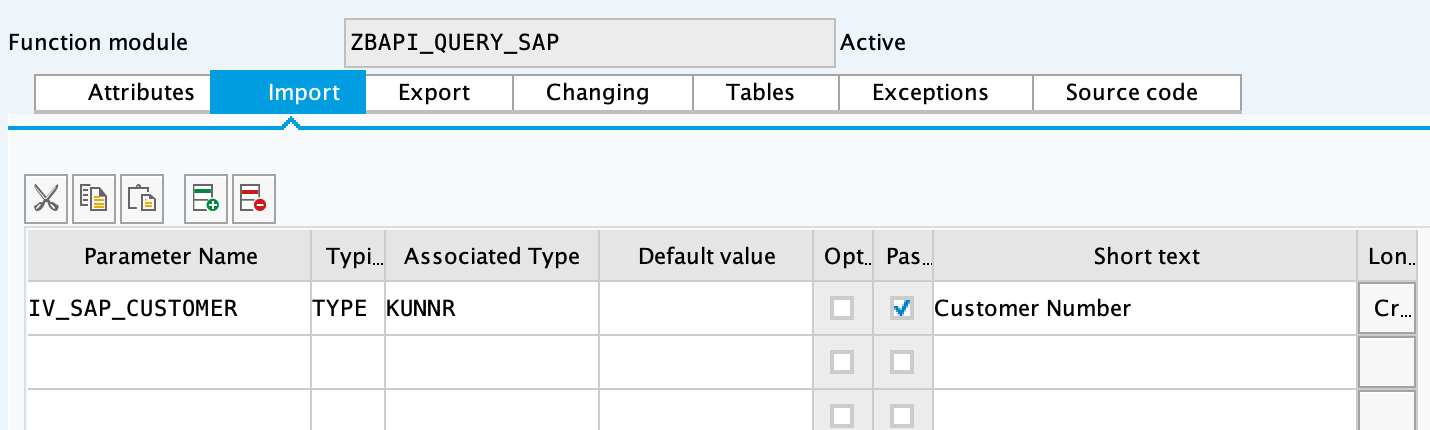

  8. Complete the import parameters with the following:

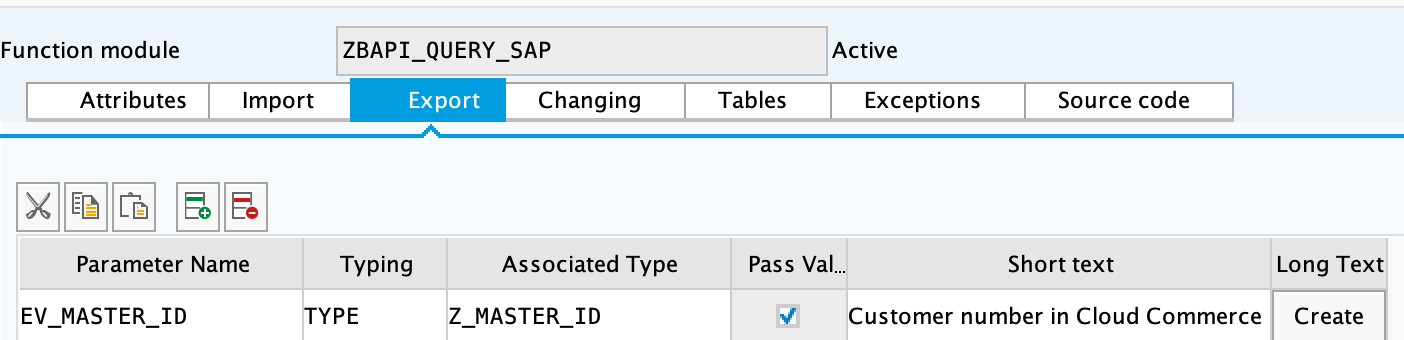

  9. Complete the export parameters with the following:


  10. Copy and paste the code from 'ZBAPI_QUERY_SAP.txt'.

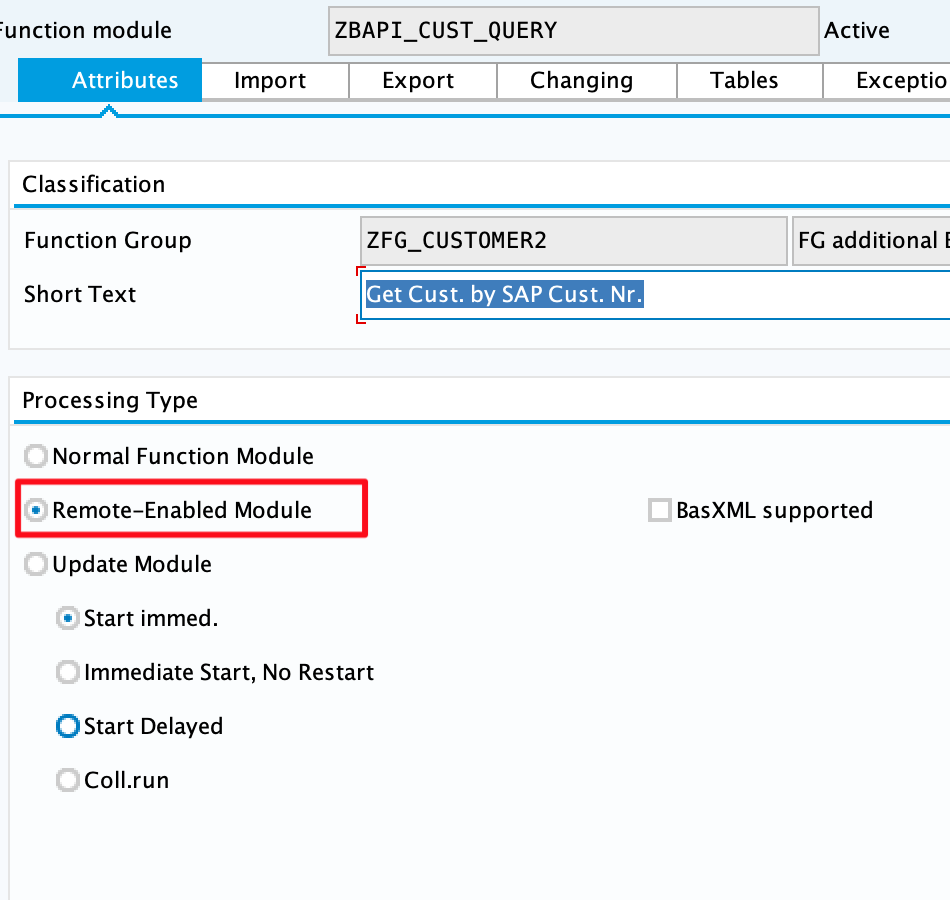

  11. Create the function module ZBAPI_CUST_QUERY using 'Remote-enable module' as the processing type:

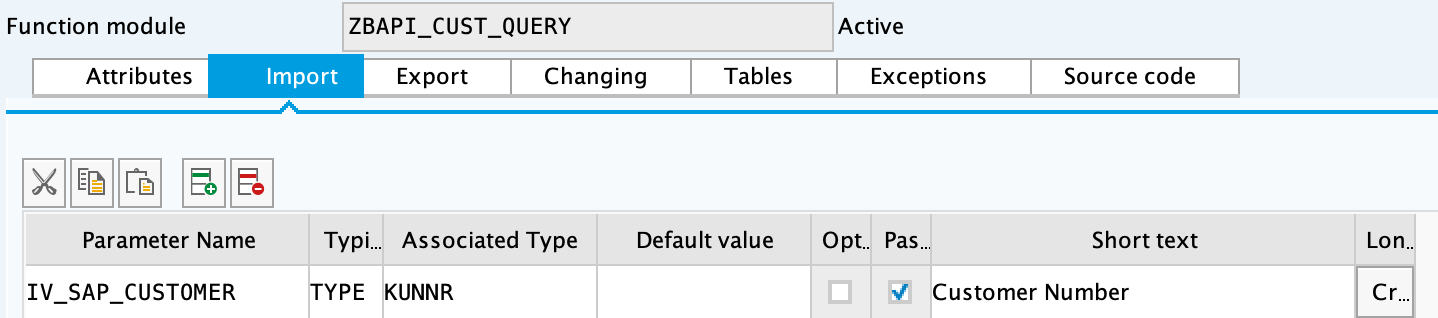

  12. Complete the import parameters with the following:

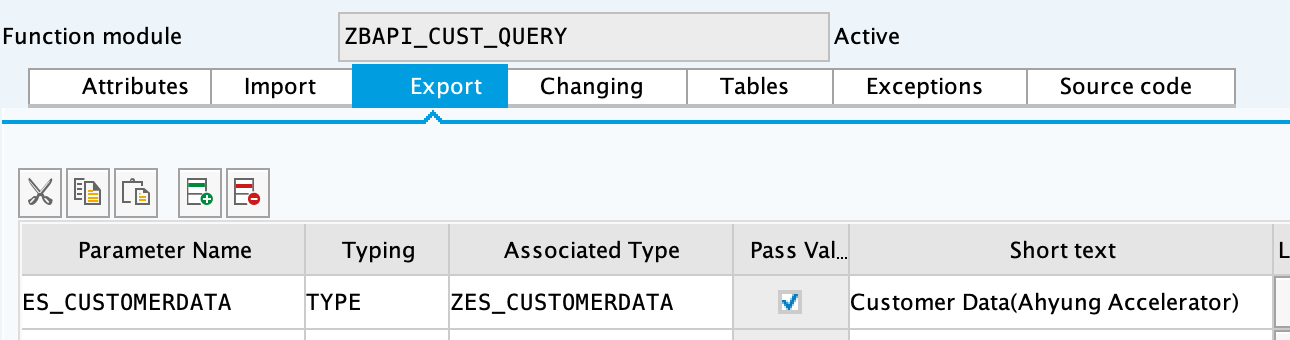

  13. Complete the export parameters with the following:


  14. Copy and paste the code from 'ZBAPI_CUST_QUERY.txt'.

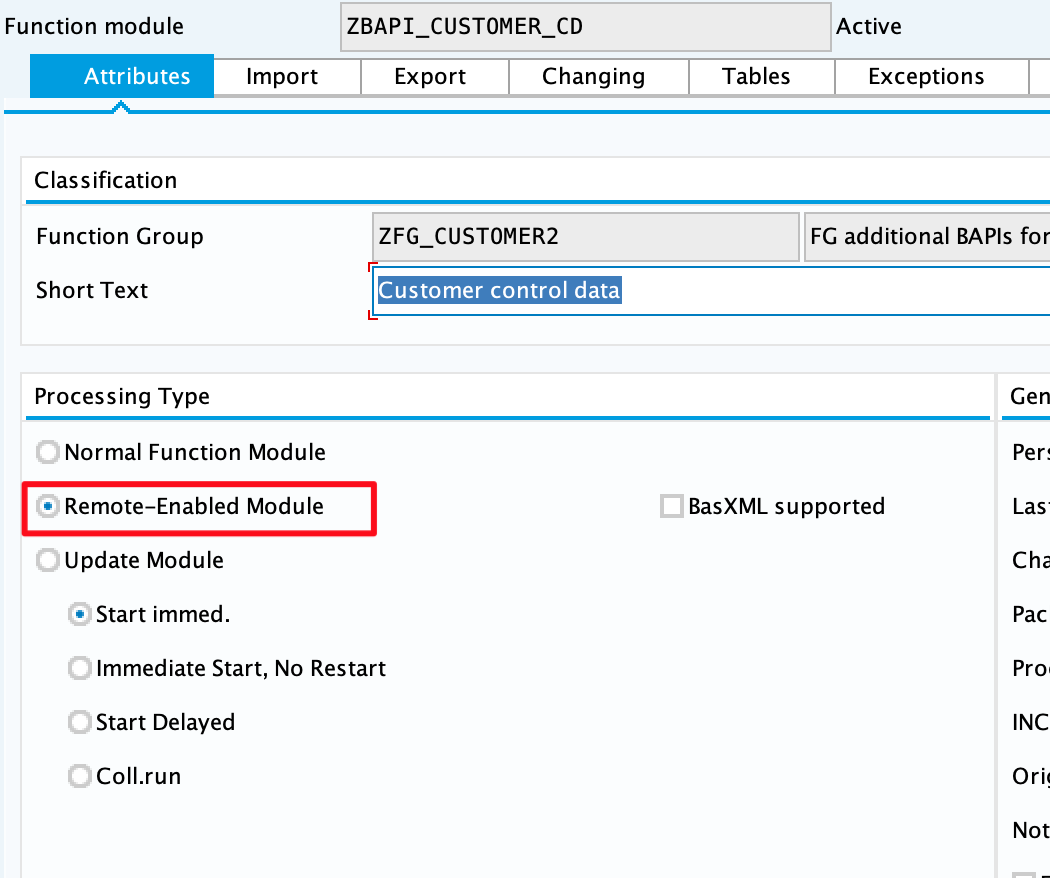

  15. Create the function module ZBAPI_CUSTOMER_CD using 'Remote-enable module' as the processing type:

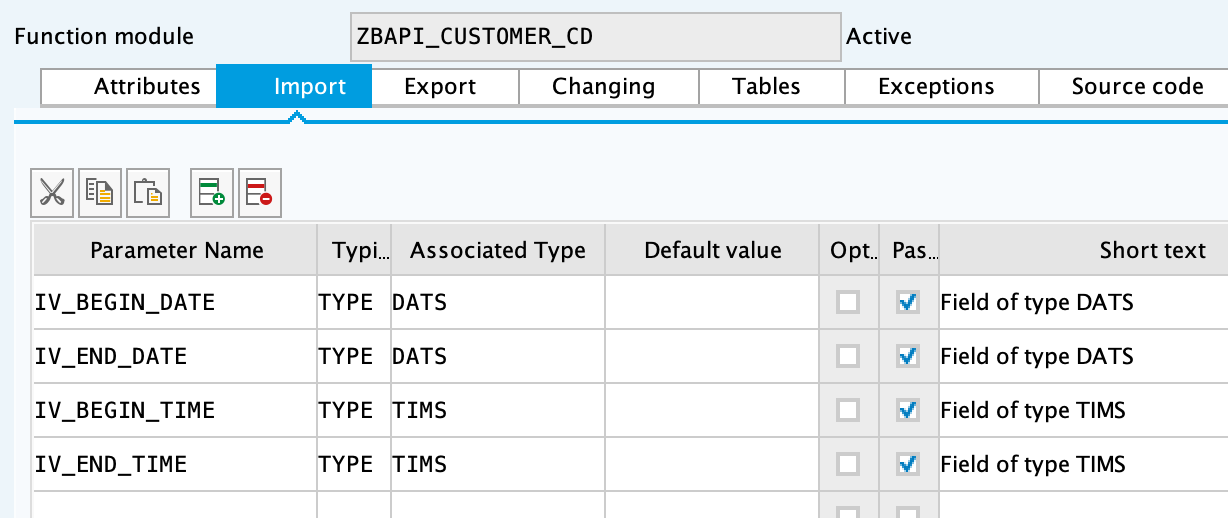

  16. Complete the import parameters with the following:

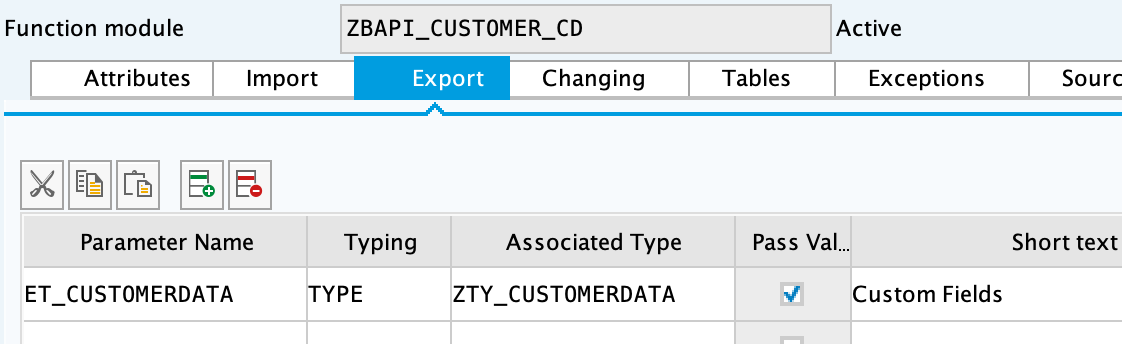

  17. Complete the export parameters with the following:


  18. Copy and paste the code from 'ZBAPI_CUSTOMER_CD.txt'.

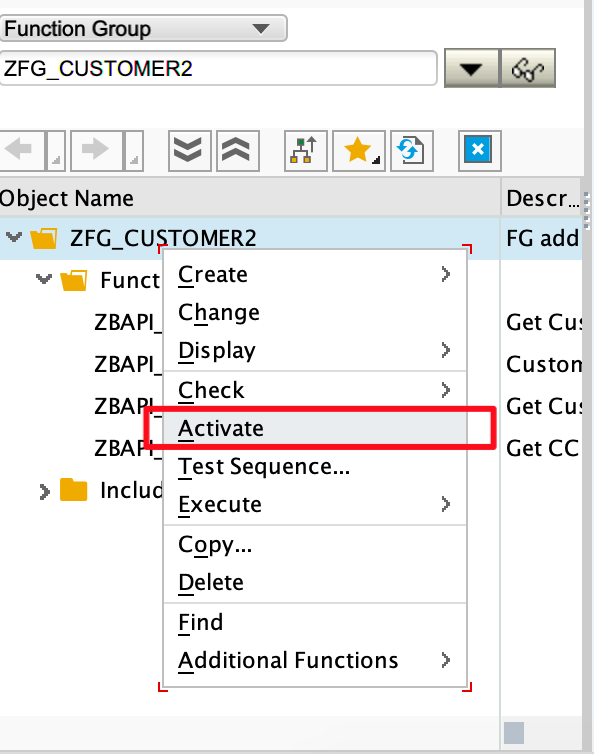

  19. Activate the entire function group by right-clicking on it in the tree and selecting 'Activate':




back to top
